1000L Brewery Equipment

Product Paramenters

Advantage of Configuration

---------------------------------------------------------------------------------------------------------------------------------

▶ 3-vessel brewhouse can achieve 4 batches of brewing per day, laying a good foundation for the expansion of production

▶  Mixing unit for better mixing of grain and water

▶ The lower agitator motor has more torque;

▶ The liftable scraper cooperates with the pneumatic gate valve to automatically discharge the waste;

▶ Filter tank up to 8mm thick flat bottom and stainless steel square tube support, strong and stable

▶ The wort loop pipe with multiple branch pipes to collect the wort more evenly;

▶ The backwash loop pipe with multiple branch pipes to solve the difficulty of filtration;

▶ Independent heater in the kettl for better boiling effect;

▶ Specially designed steam jacket device to improve steam utilization efficiency and avoid "water hammer" problem

▶ Special tank and pipeline structure to avoid wort aeration problem and reduce material loss

▶ The boiling process can be carried out under pressure, especially for breweries at higher altitudes.

▶ Specially designed steam condensing unit with both steam condensing and hot water recovery functions

▶ Reserve the cooling capacity and pipeline interface for future expansion;

▶ Fully automatic control system: an automatic system with curve display and production record printing, which can store and recall a series of recipes, and complete the brewing process with one key;

10HL Nano Brewery Standard Configuration

---------------------------------------------------------------------------------------------------------------------------------

Malt Milling Unit

▶ Grist case

▶ Particles adjustable counter-roll dry crusher or wet crusher

▶ Flexible or steel auger lifts milled grain directly to the mash bucket

Brewhouse System

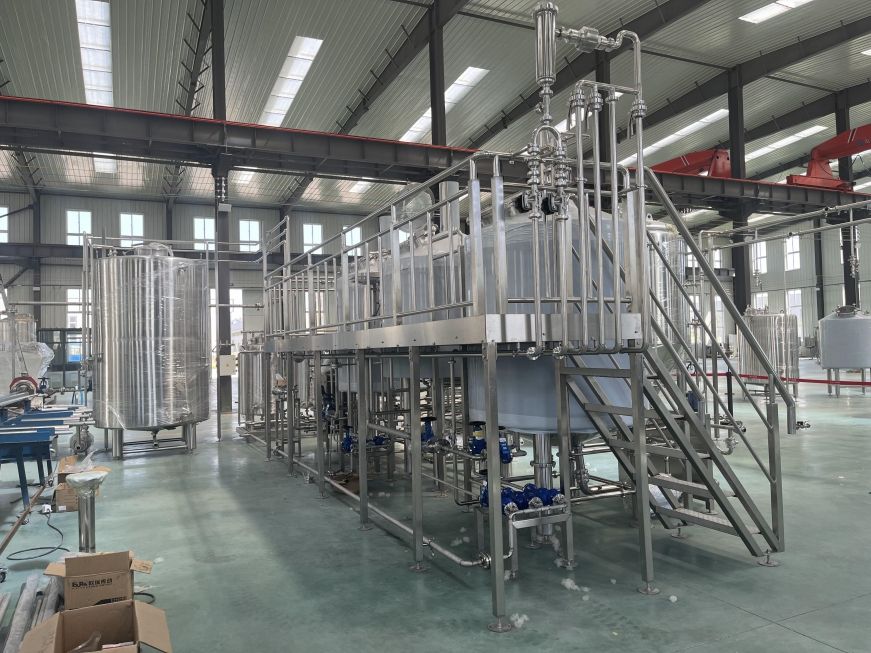

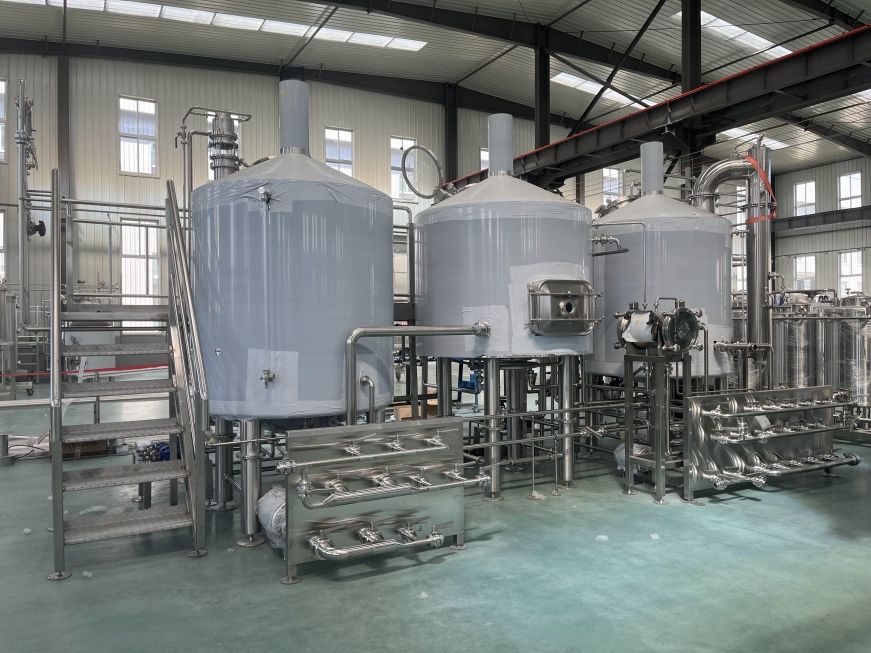

▶ Mash tun, lauter tun, kettle/whirlpool tun 3-vessel combination;

▶ Two-stage or single-stage heat exchanger for wort cooling;

▶ Wort oxygenation device before entering the fermenter;

▶ Hygienic and high-efficiency mash pump with frequency conversion

▶ Sanitary stainless steel pipes and valves

▶ Quick-install and fully detachable stainless steel operating platform

▶ Special combination of brewing water tank, hot water tank and cold water tank can be selected

Fermentation System

▶ Stainless steel fermentation tank with cooling jacket

▶ Stainless steel bright tank or storage tank with cooling jacket

▶ The quantity and volume of fermentation tanks are accurately calculated by the fermentation cycle of various beers

▶ All orifices, valves, pressure gauges, safety valves, temperature probes, rotating arm beer outlet and other accessories are included

▶ Unitanks with carbon dioxide charging device with carbon fossil

▶ PPR pipes and stainless steel pipes with thermal insulation layer are available;

Glycol Cooling System

▶ Insulated glycol tank for glycol liquid holding and mixing

▶ The chiller or refrigerator is accurately calculated the cooling capacity according to the needs of heat exchanger and fermentation system

▶ Sanitary centrifugal pump powering glycol water circulation

▶ Other more energy-efficient options, such as adding a cold water tank

CIP Cleaning System

▶ A removable CIP cleaning system including lye tank and acid tank is available;

▶ Fixed CIP cleaning system including lye tank, acid tank and hot water tank is available;

▶ Simple mobile pump is available;

Control System

▶ PID semi-automatic control with temperature display, setting and control and pump start-stop control is available;

▶ PLC automatic control is optional; it has temperature, flow, liquid level display and control, accurate metering of feeding water and automatic mixing, editing and storage of recipes and one-key completion of the brewing process;

10HL Nano Brewery Optional Configuration

---------------------------------------------------------------------------------------------------------------------------------

▶ Water treatment device for brewing water

▶ Gas or electric boilers for providing thermal energy;

▶ Filter press instead of filter tank;

▶ Waste grains conveying device with auger and grains storage tank

▶ Yeast culture system and yeast recovery system;

▶ Air compressor

▶ Tunnel pasteurization system or instant sterilization system;

▶ Packaging system for beer kegs, beer bottles and cans;

▶ Removable diatomaceous earth filter

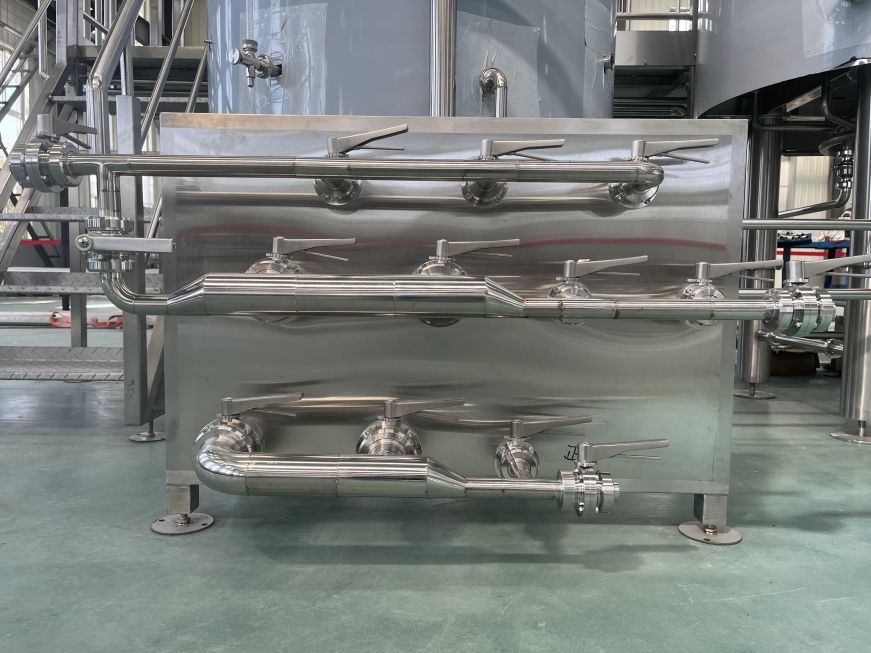

▶ Tube sheets for centralized valve operation;

Model/Specification
