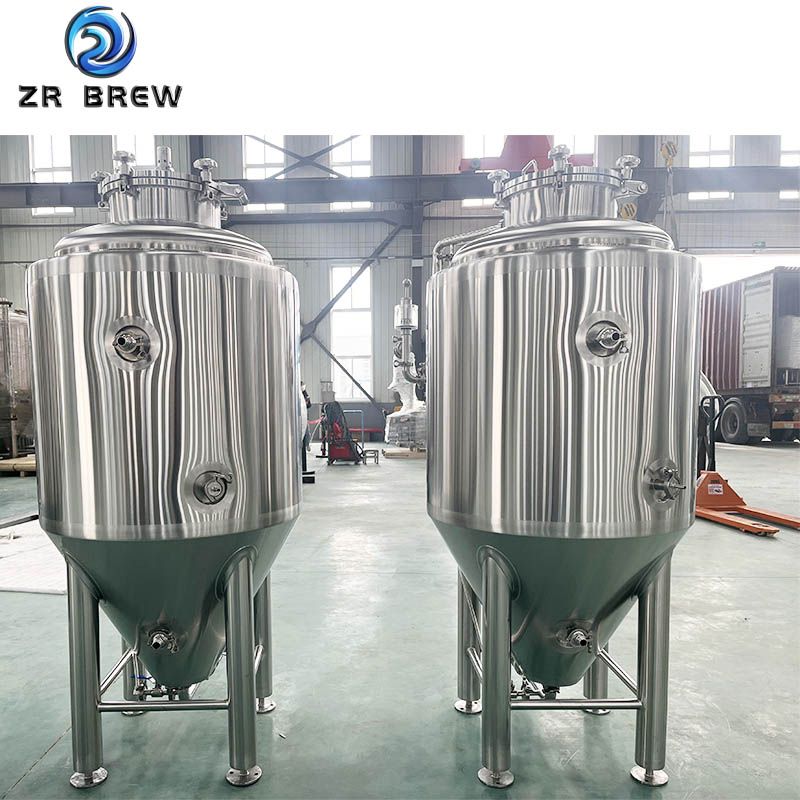

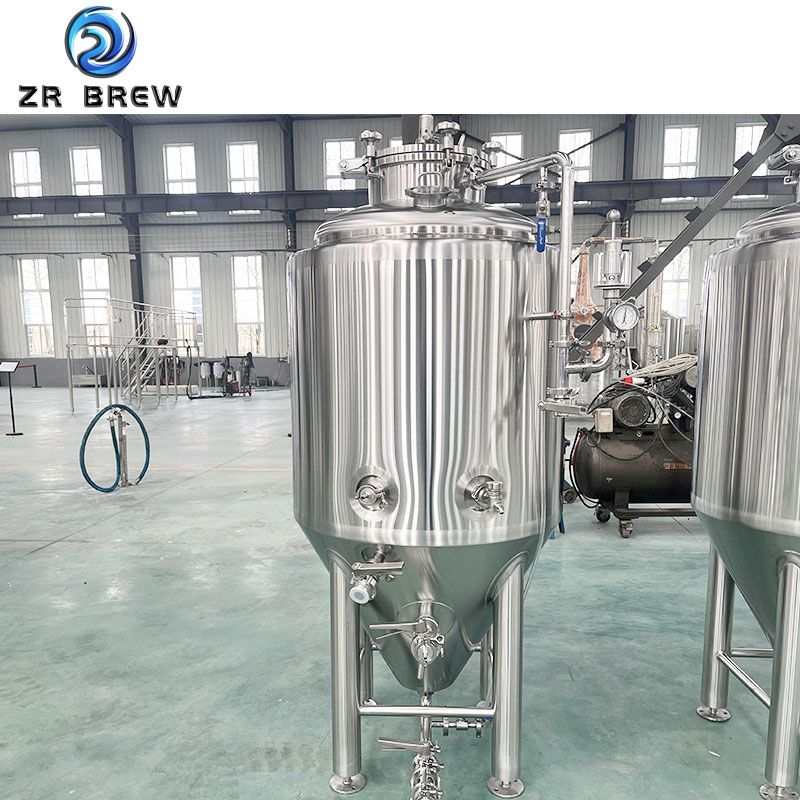

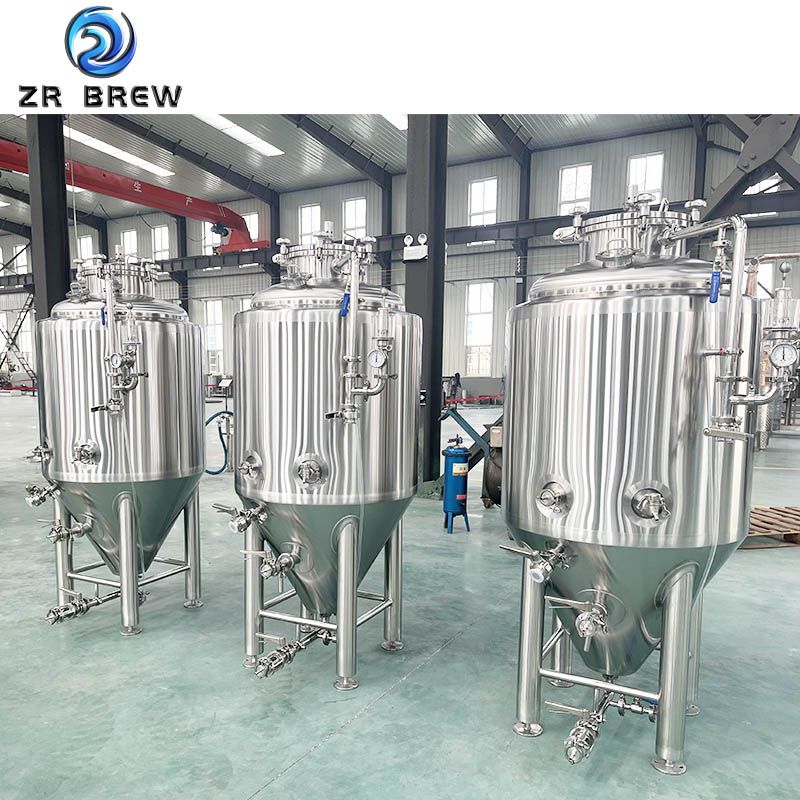

300L Fermentation tank is manufactured by ZR BREW,we can customize beer fermentation tanks of different specifications according to customer needs. All fermentation tanks are made of certified 304 or 316 stainless steel materials and components, 100% TIG welding and hygienic polishing,to ensure food hygiene level, and strictly undergo strict production process Quality control, inspectionp; and pressure testing, form detailed inspection records, and send out with the goods. ZR BREW guarantees free delivery of all valves and fittings.


Product Paramenters




InteriorJacket
MaterialSUS304SUS304
Working pressure (Mpa)0.2 (30psi)0.2(30psi)
Design pressure (Mpa)0.3 (45psi)0.4 (60psi)
Effective volume300l
Total volume375l
Tank sizeØ860*2000
Cooling methGlycol water cooling
Insulation materialPolyurethane
Insulation thickness(mm)80
Inter tank thickness (mm)3.0
Outer tank thickness(mm)2.0
Cone angle60°
Note:1Barrel (BBL) =117 Liter   1Hl=100 Liter  1Gallon=3.7854 Liter  145psi=1MPa

Specifications and models




Sepcification selection

Total volume(L)

Cooling ares(m2)

Diameter(mm)

Height

ZR-FV-100

125

0.86

650

1500

ZR-FV-200

250

1.3

850

1600

ZR-FV-300

375

1.9

860

2000

ZR-FV-400

500

2.1

960

2000

ZR-FV-500

625

2.2

960

2200

ZR-FV-1000

1250

3.4

1260

2600

ZR-FV-1500

1875

4.5

1460

2850

ZR-FV-2000

2500

5.4

1600

3100

ZR-FV-2500

3125

6.0

1800

3400

ZR-FV-3000

3750

6.7

1800

3600

ZR-FV-4000

5000

7.6

1900

4000

ZR-FV-5000

6250

8.5

2200

3800



300l fermenter standard configuration





 Dished and conical head are available

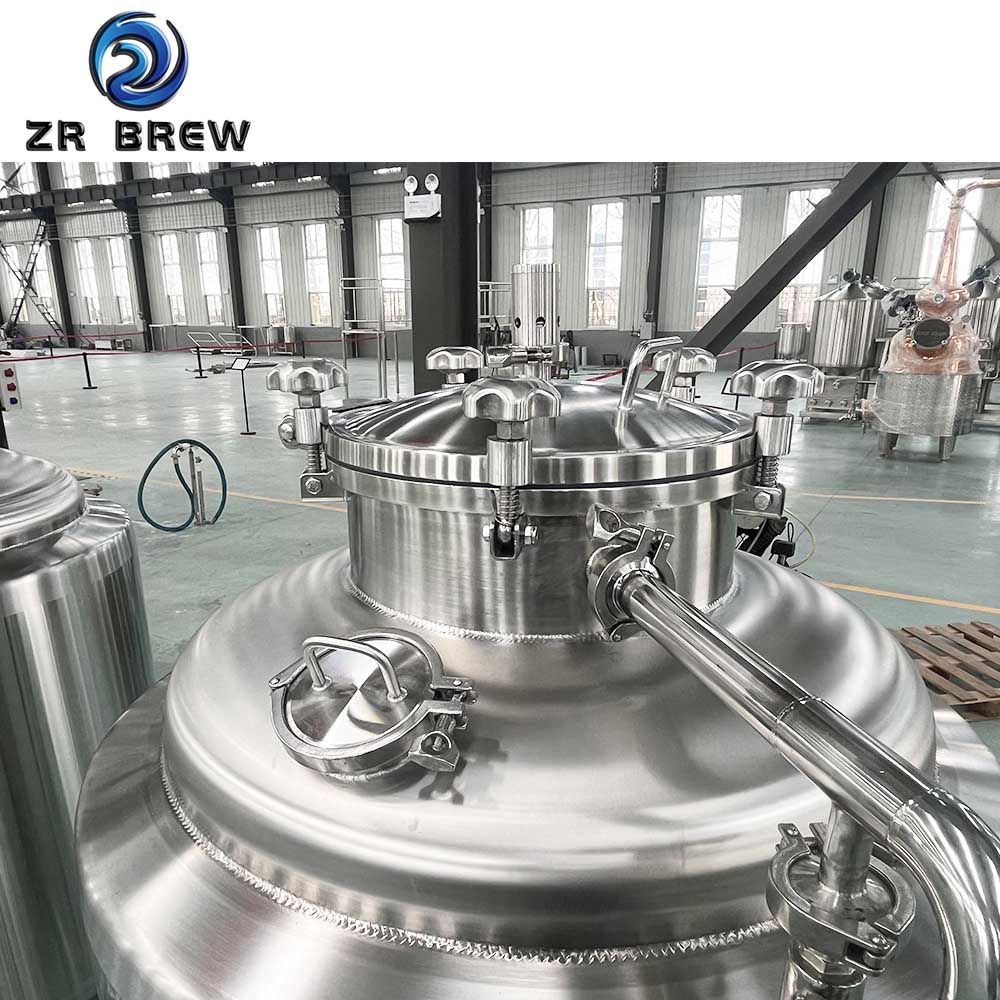

 Pressure top manhole door

 TC connected CIP arm with 360° coverage spraying ball

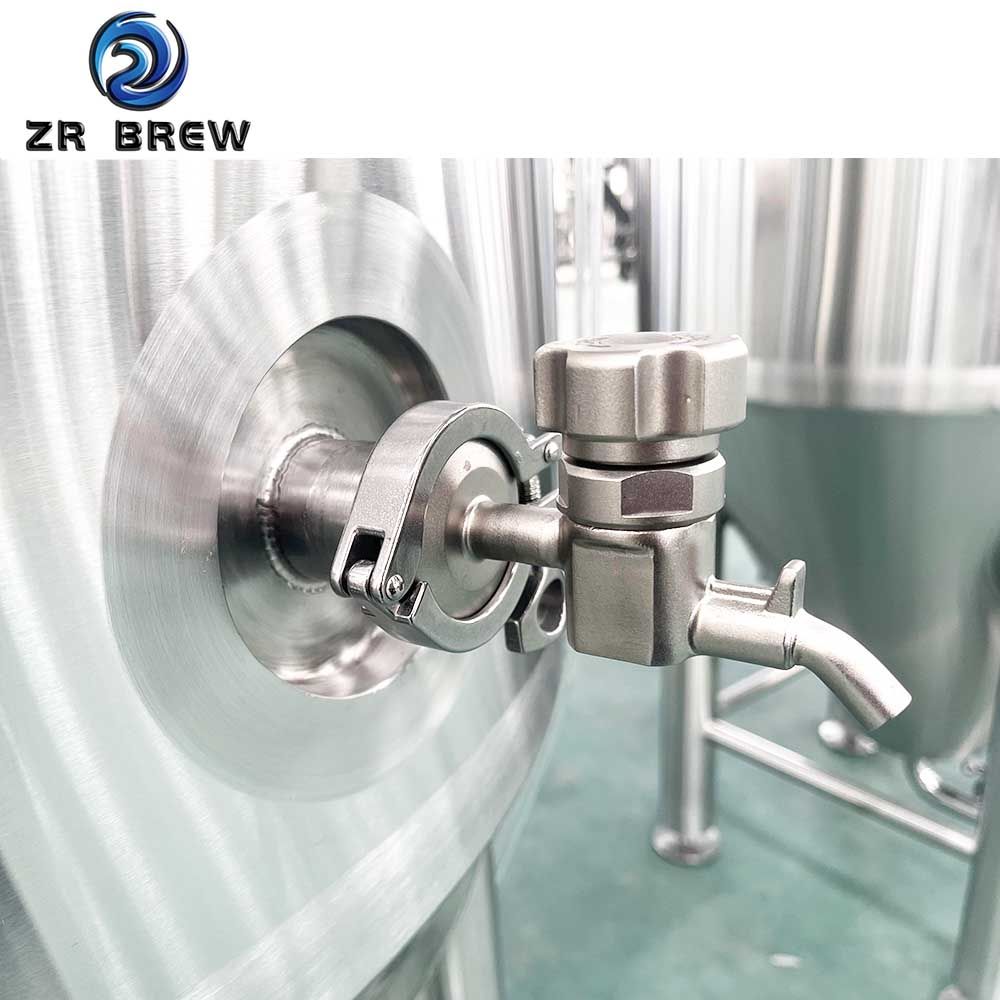

 Sanitary sample valve

 Safety valve on top

 Mechanical safe valve PVRV 2.2 bar on CIP arm

 Diaphragm pressure gauge on CIP arm

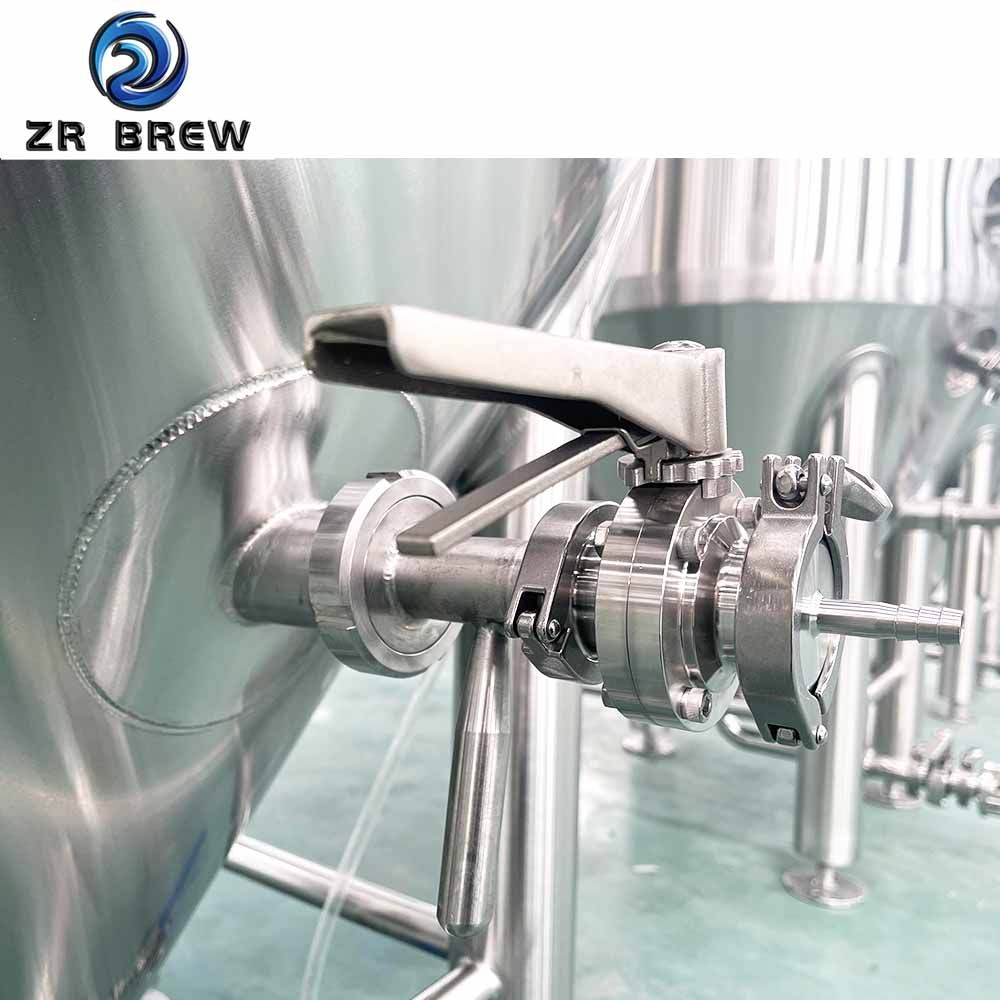

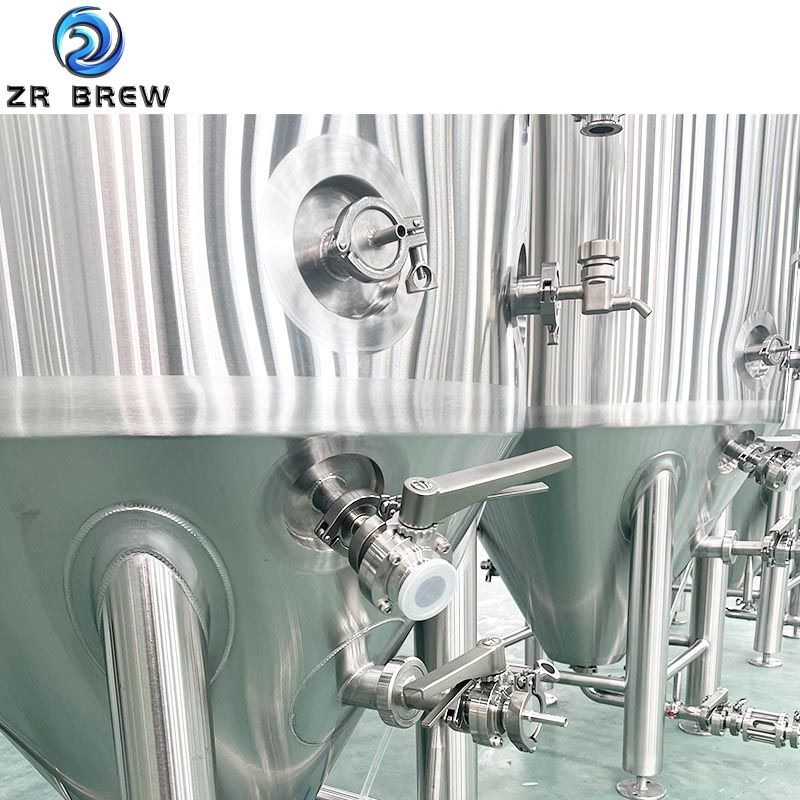

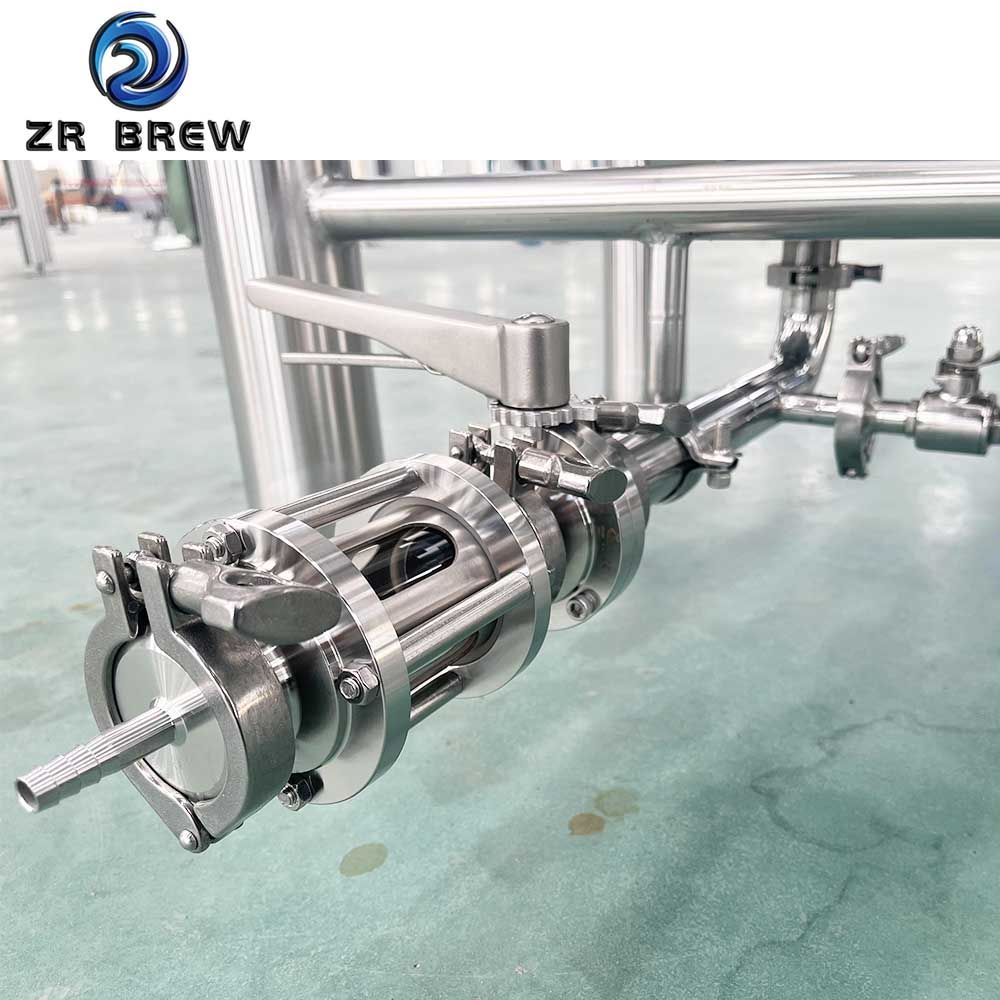

 Horizontal rotating racking arm and port on cone with butterfly valve

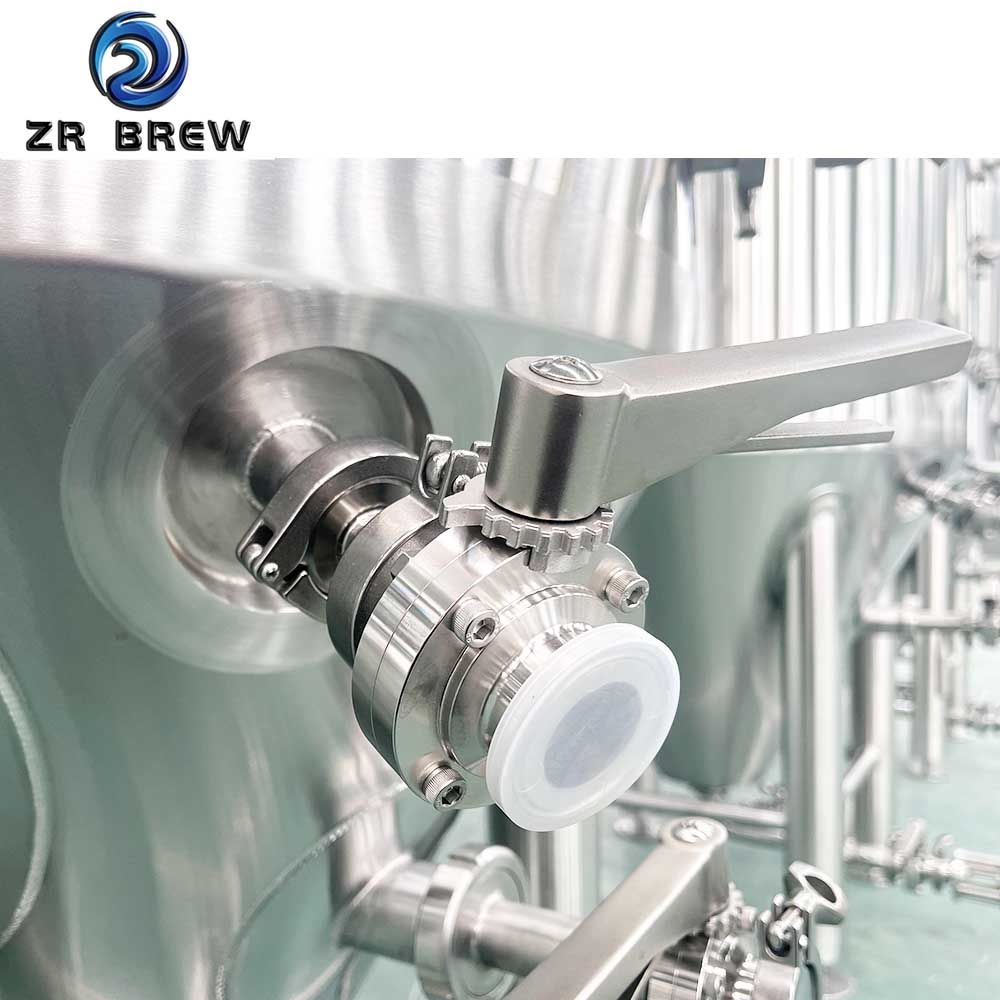

 Tri clamp discharge arm with butterfly valve

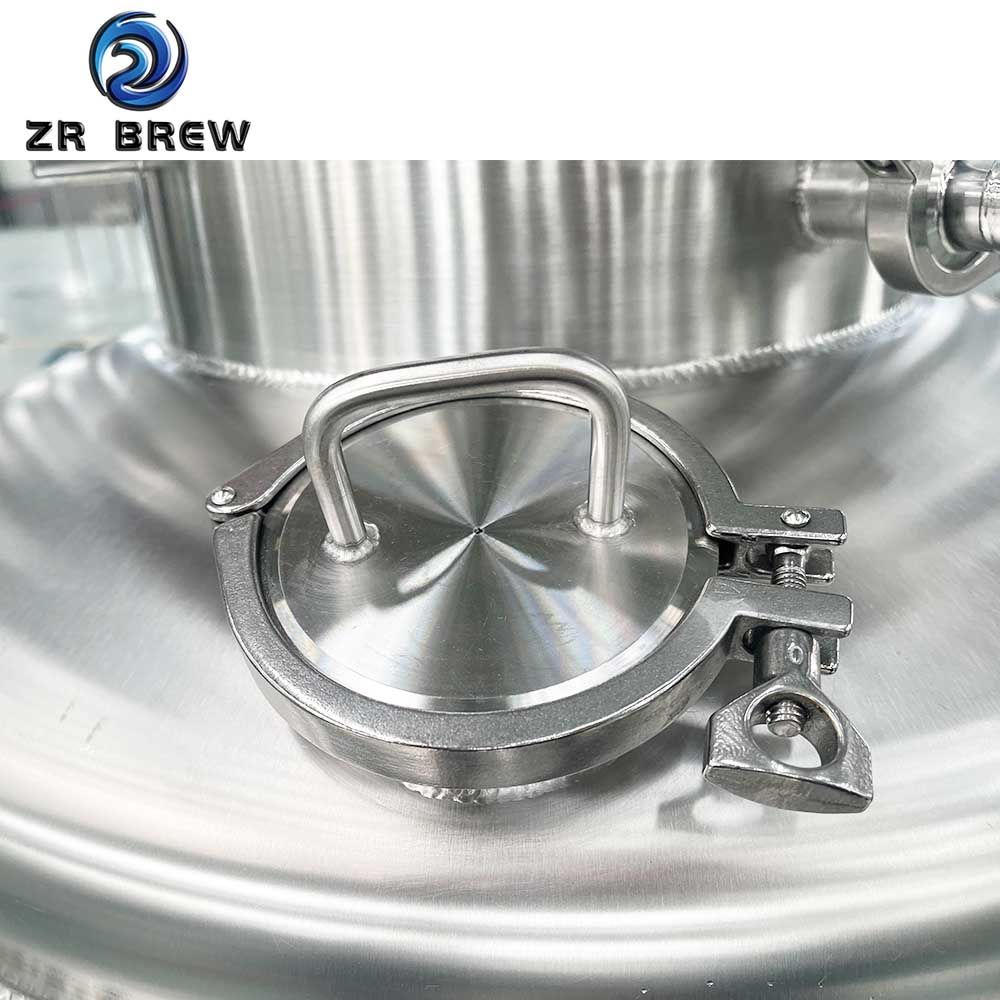

 Dry hopping port 6-8'' TC with solid end cap

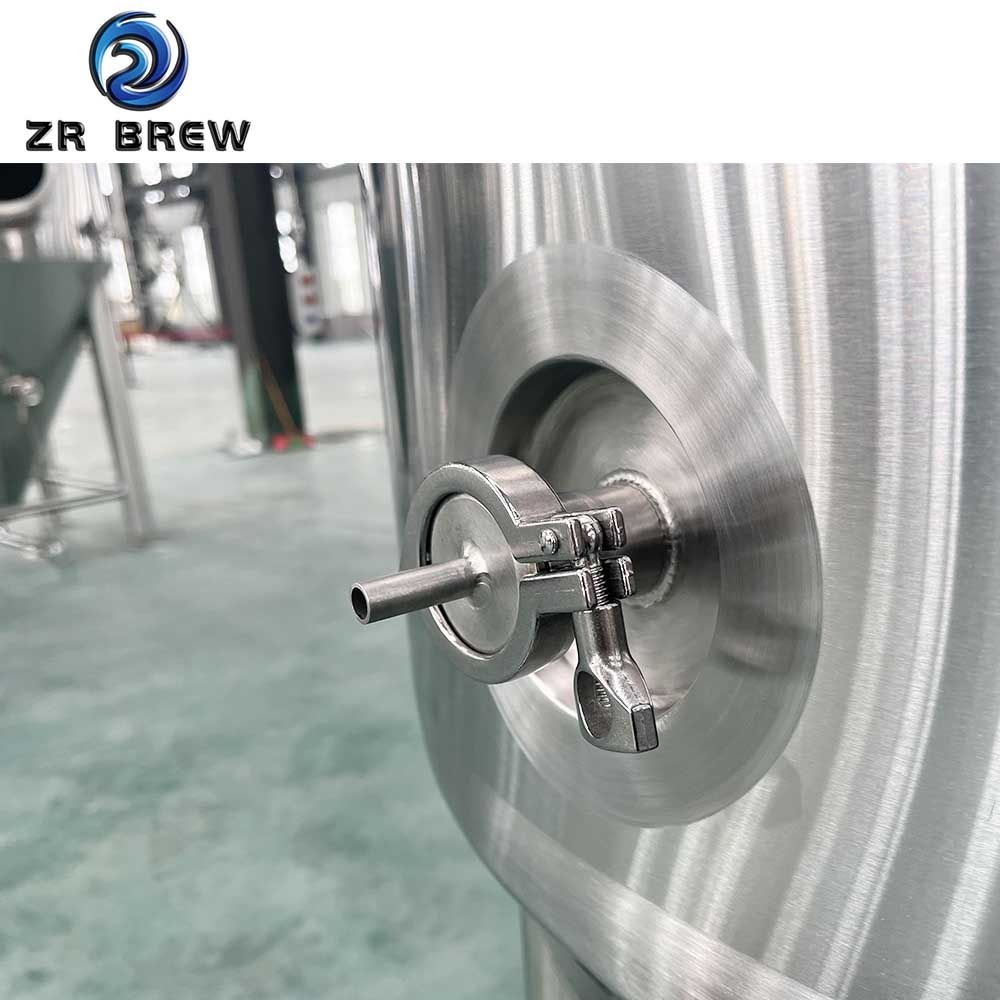

 Thermowell for high accuracy temperature sensor

 3pcs completely SUS304 heavy duty legs with leveling pad and legs support

 Complete valves, fittings and all parts

 100% TIG welding with pure argon gas shield

 Interior Finish: Sanitary 2B finish, Pickled and Passivated; (8K Mirror finish optional)

 Exterior Finish: Oil brushed finish2B, 8K Mirror finish optional)

 Interior full polished to 0.2~0.4 μm without dead corner

 Glycol Jacket: Dimpled plate on cone and side



300l fermenter optional configuration

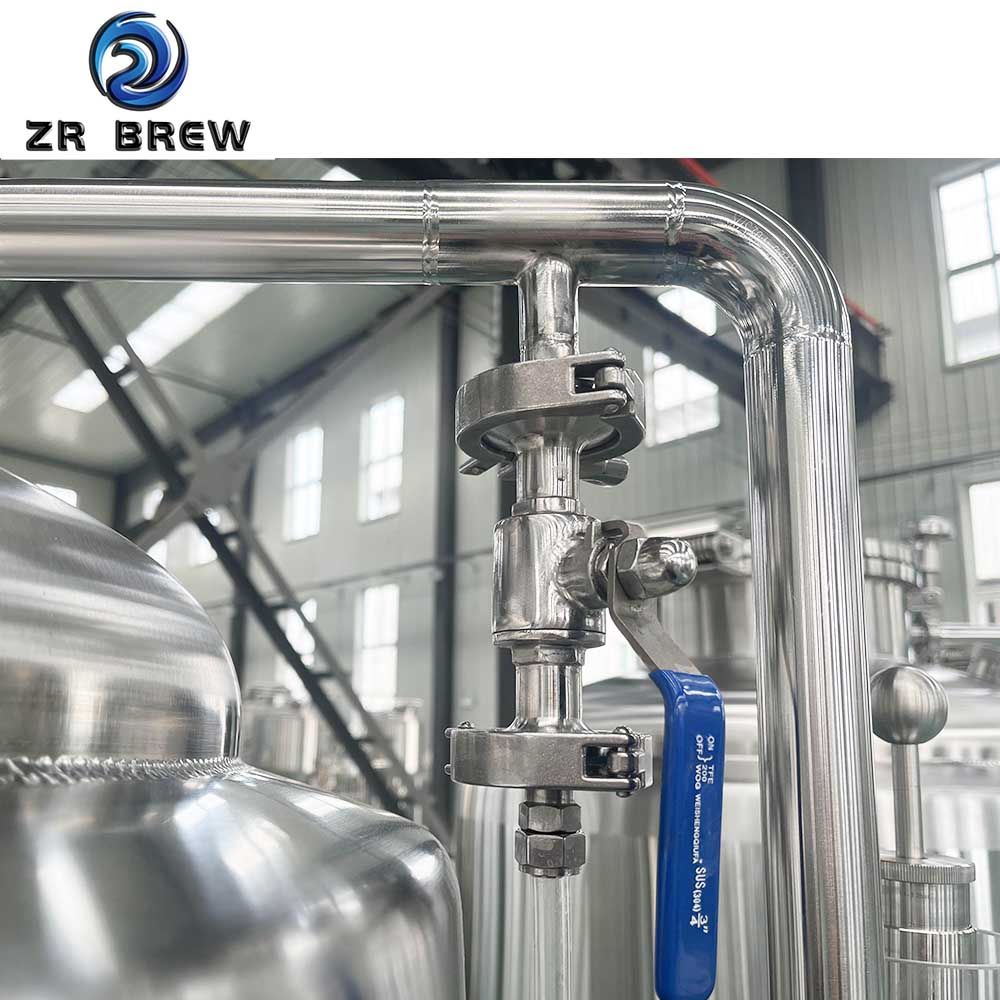

Separate blow-off pipe & CIP

Carbonation stone for CO2

Display temperature gauge in front

Liquid level display on the sidewall



Advantage of configuration





For easy yeast excretion, designed with a 60° cone angle

Polishing/drawing/mirror finish/pickling passivation optional

Shadowless manholes or top manholes depending on the customer's fermentation process and brewing type.

The headspace is larger, and the covering headspace volume is calculated separately and additionally.

Jacket test by water and gas, 5bar/75psi for 1hour, 3.5bar/52psi for 48 hours,Tank leakage test by water and gas, 4bar/60psi for 1hour, 2.5bar/37.5psi for 48 hours,all data will be recorded to facilitate strict quality control and management

For flexible conveying of beer, it is equipped with a swivel rocker

To ensure tank alignment and leveling, it is equipped with adjustment bolts
