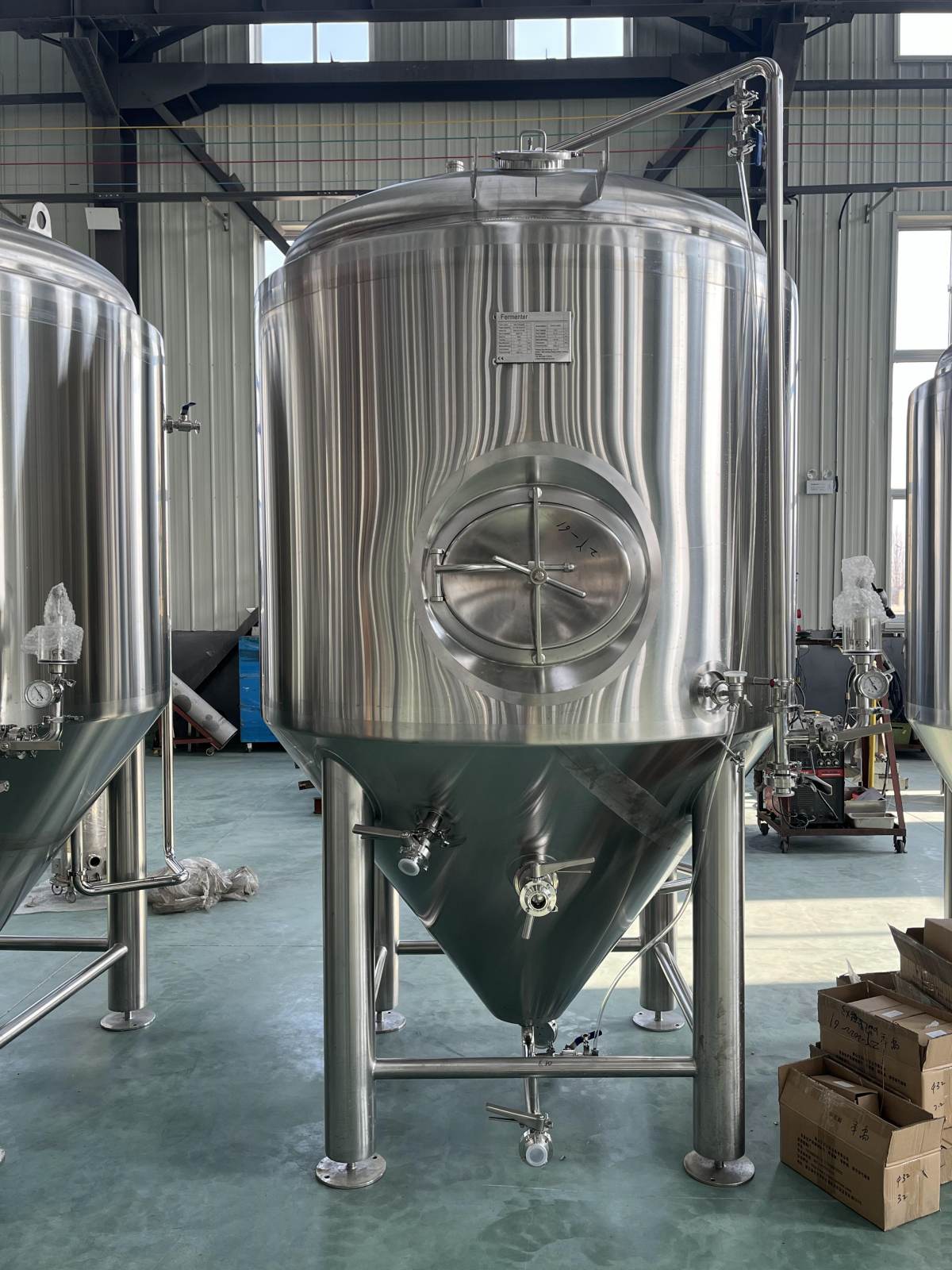

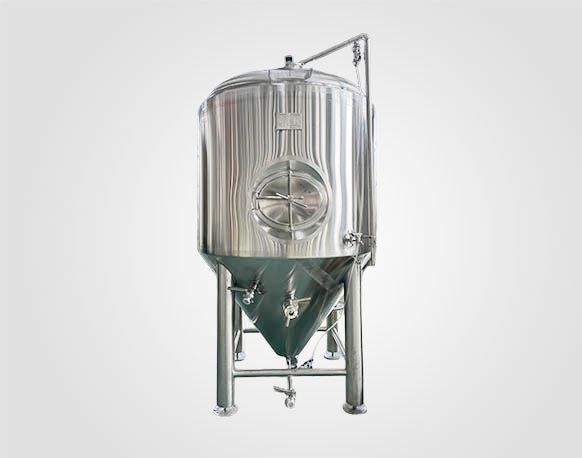

1200L Stainless Conical Fermenter

1200L Stainless Conical Fermenter is manufactured by ZR BREW,we can customize beer fermentation tanks of different specifications according to customer needs. All fermentation tanks are made of certified 304 or 316 stainless steel materials and components, 100% TIG welding and hygienic polishing,to ensure food hygiene level, and strictly undergo strict production process Quality control, inspectionp; and pressure testing, form detailed inspection records, and send out with the goods. ZR BREW guarantees free delivery of all valves and fittings.

Product Paramenters

Details Images

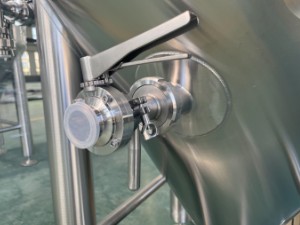

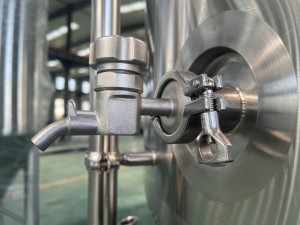

Mechanical PRV	Sample Valve	Pressure Manhole	Racking Arm	Thermometer

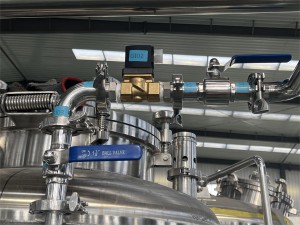

Titanium Rods	Temperature Sensor	Solenoid Valve	Welding Detail	Sewage Port

1200L Stainless Conical Fermenter  standard configuration

Dished and conical head are available

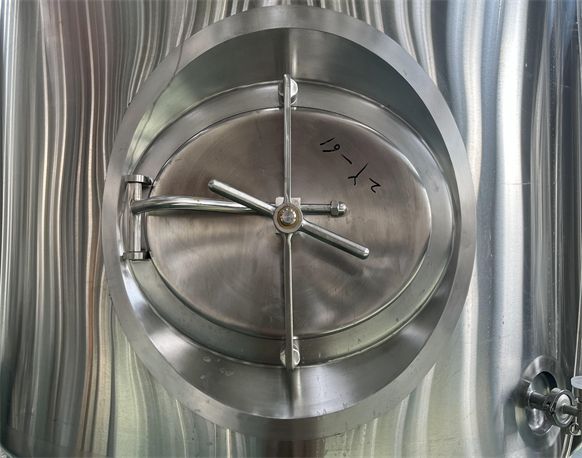

 Pressure side manhole door

 TC connected CIP arm with 360° coverage spraying ball

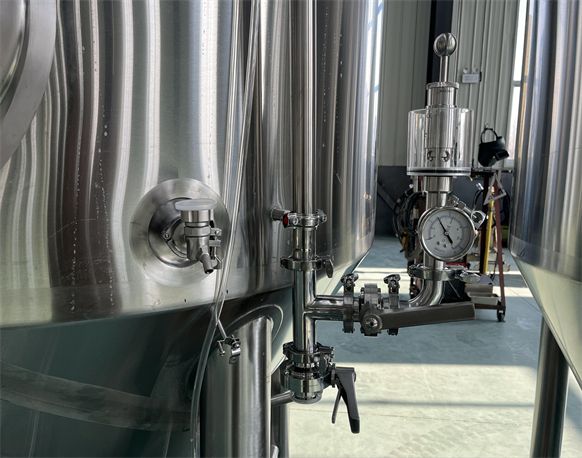

 Sanitary sample valve

 Mechanical safe valve PVRV 2 bar on top

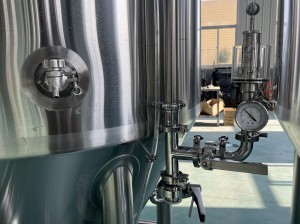

 Diaphragm pressure gauge on CIP arm

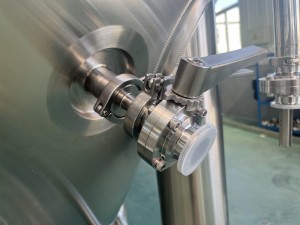

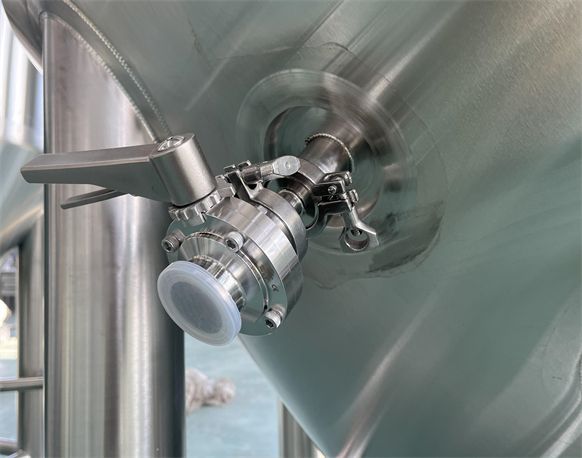

 Horizontal rotating racking arm and port on cone with butterfly valve

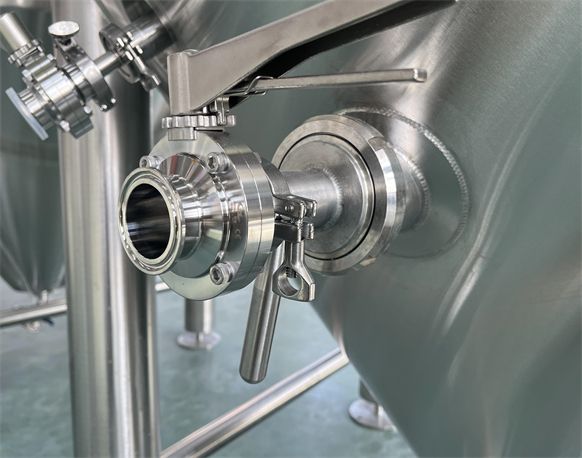

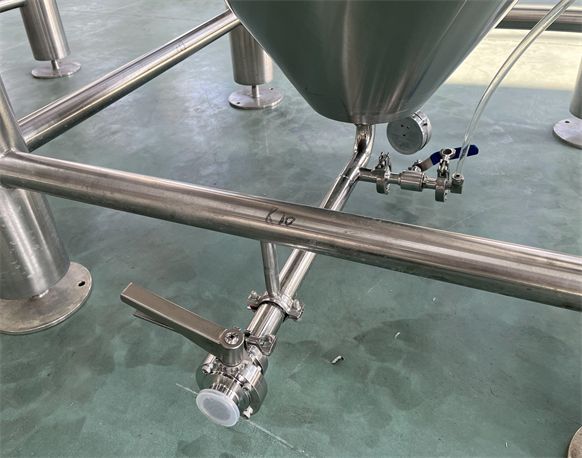

 Tri clamp discharge arm with butterfly valve

 Dry hopping port 4-6'' TC with solid end cap

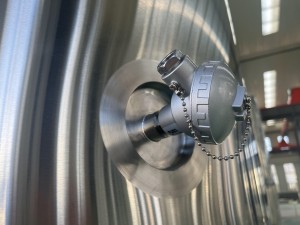

 Thermowell for high accuracy temperature sensor

 4pcs completely SUS304 heavy duty legs with leveling pad and legs support

 Complete valves, fittings and all parts

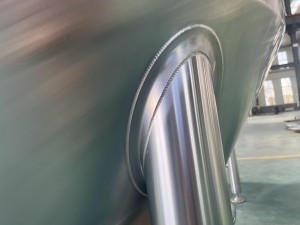

 100% TIG welding with pure argon gas shield

 Interior Finish: Sanitary 2B finish, Pickled and Passivated; (8K Mirror finish optional)

 Exterior Finish: Oil brushed finish（2B, 8K Mirror finish optional)

 Interior full polished to 0.2~0.4 μm without dead corner

 Glycol Jacket: Dimpled plate on cone and side

1200L Stainless Conical Fermenter  optional configuration

Separate blow-off pipe & CIP

 Carbonation stone for CO2

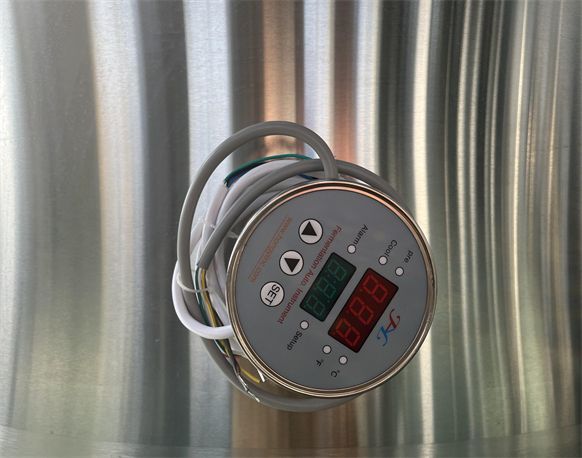

 Display temperature gauge in front

 Liquid level display on the sidewall

Advantage of configuration

For easy yeast excretion, designed with a 60° cone angle

 Polishing/drawing/mirror finish/pickling passivation optional

 Shadowless manholes or top manholes depending on the customer's fermentation process and brewing type.

 The headspace is larger, and the covering headspace volume is calculated separately and additionally.

 Jacket test by water and gas, 5bar/75psi for 1hour, 3.5bar/52psi for 48 hours,Tank leakage test by water and gas, 4bar/60psi for 1hour,   2.5bar/37.5psi for 48 hours,all data will be recorded to facilitate strict quality control and management

 Easy to operate with dedicated ladder

 For easy lifting, it is equipped with lifting lugs.

 For flexible conveying of beer, it is equipped with a swivel rocker

 To ensure tank alignment and leveling, it is equipped with adjustment bolts

Specifications and models

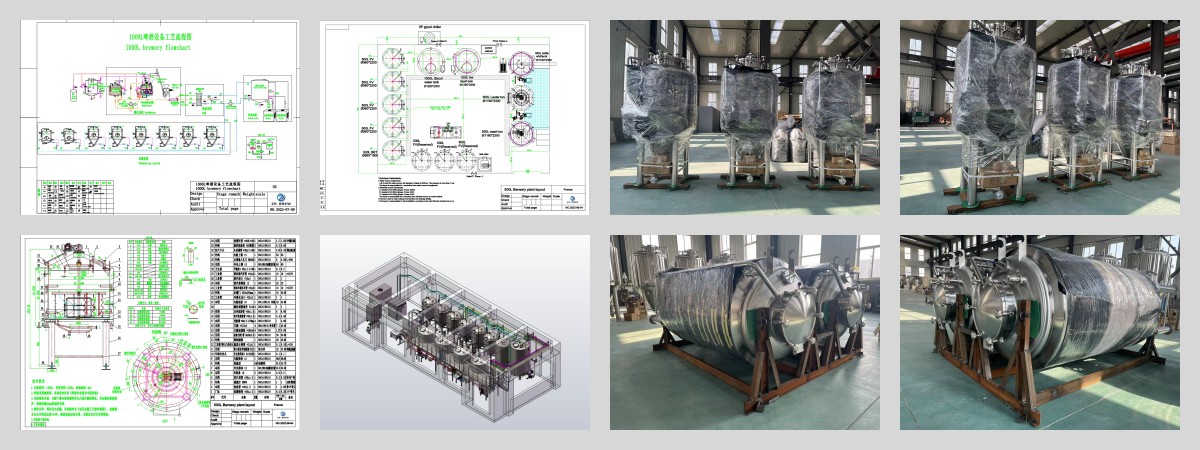

Our service

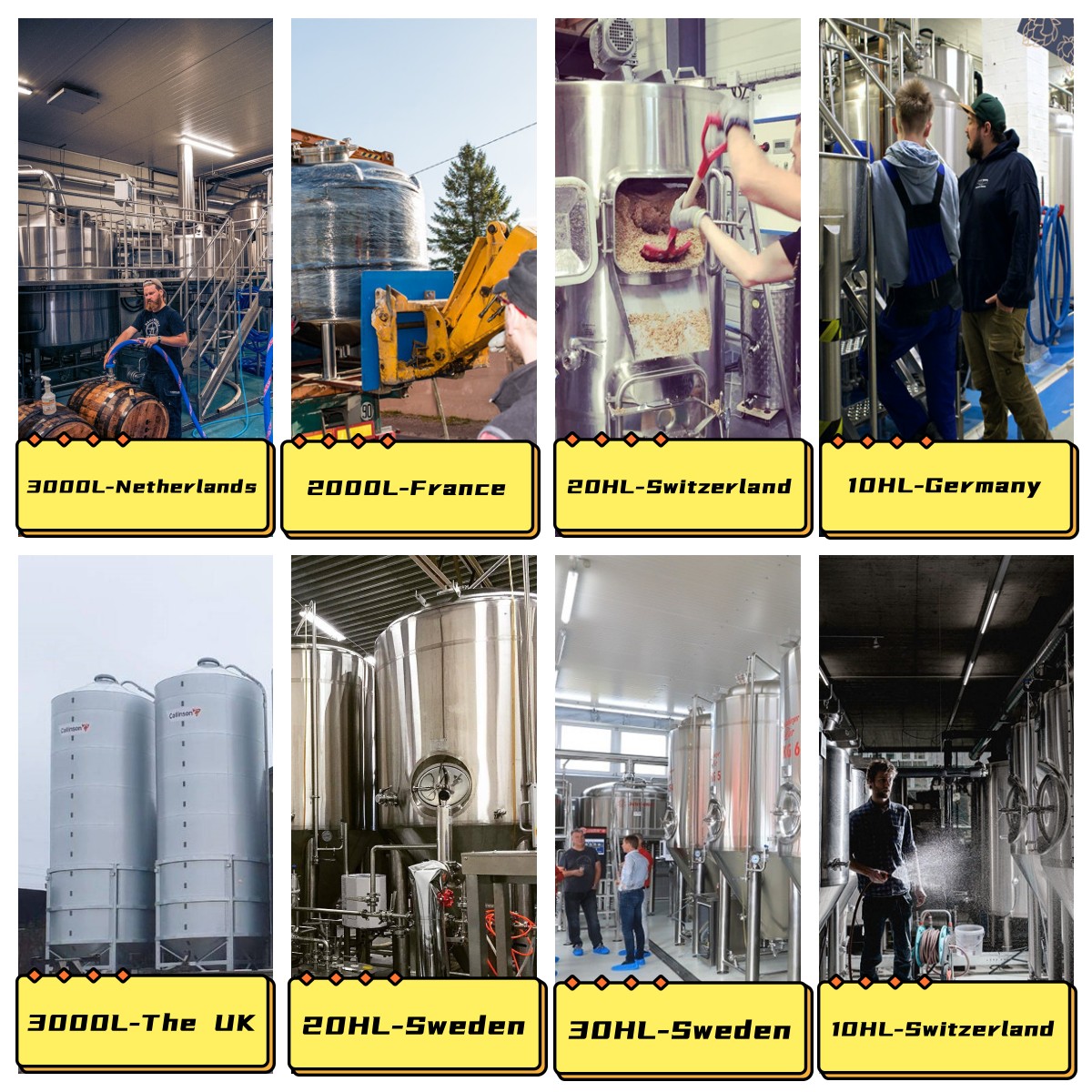

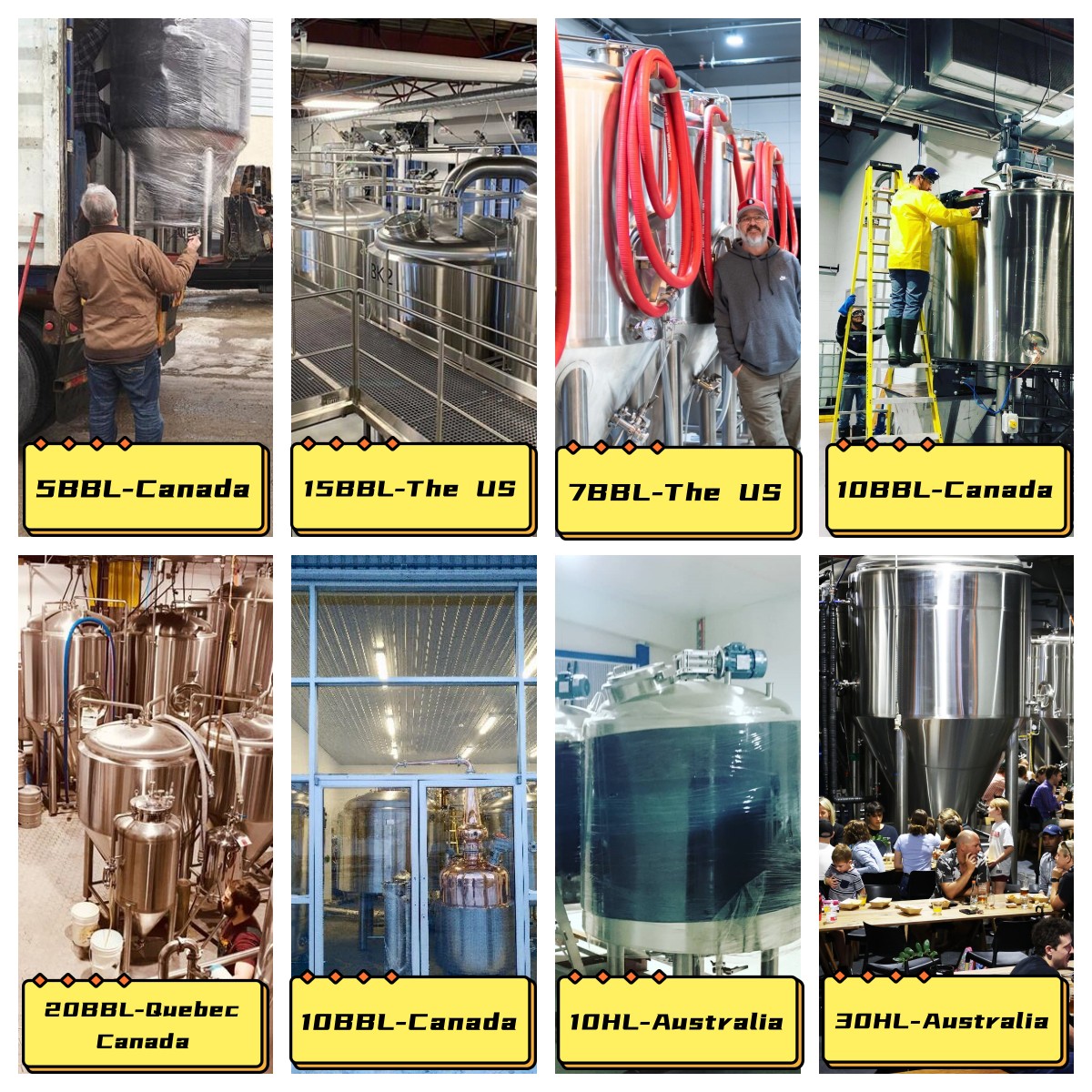

Project Case

Why choose ZR BREW

Shandong Zeren Machinery Equipment Co., Ltd. referred to as ZR BREW.ZR BREW is an equipment manufacturer

focusing on the biological fermentation industry, mainly engaged in beer brewing equipment, providing high-end

comprehensive services of product design, production, processing, installation, technical process training. ZR BREW's

products have been exported to more than 40 countries and regions in the world. Mainly concentrated in Europe and

North and South America.

ZR BREW Company is located in Jinan City, and the factory is located in Dezhou City, covering an area of 10,000

square meters. The company has 52 employees, including 6 senior technicians and 8 intermediate technicians, with

more than 20 undergraduates. Project leaders and technical engineers have more than 13 years of work experience

in the beer industry.

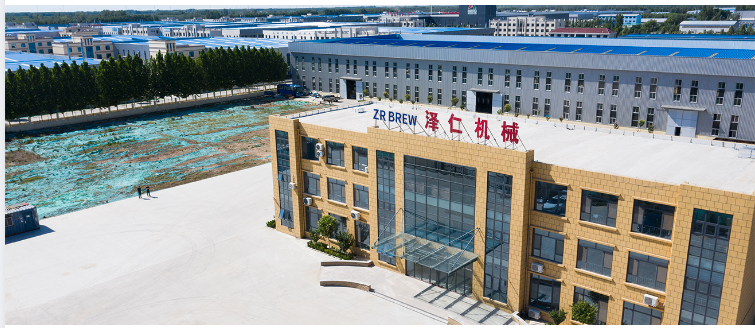

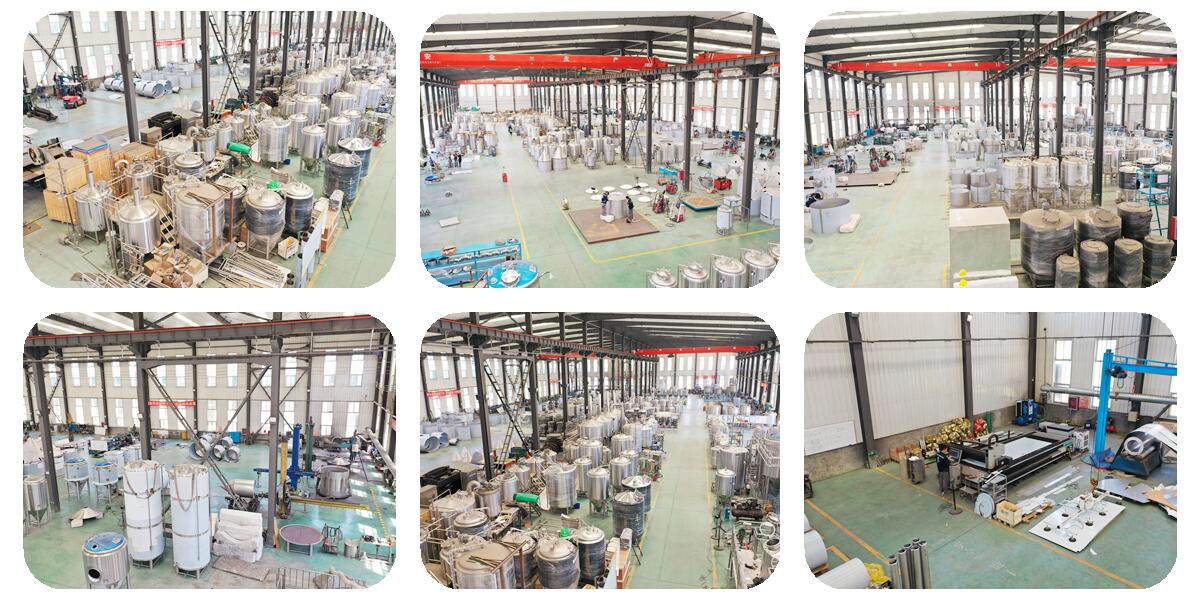

Our factory
