1000L Side Manhole Fermenter

Inquire Now Next Product

1000L Fermentation tank is manufactured by ZR BREW,we can customize beer fermentation tanks of different specifications according to customer needs. All fermentation tanks are made of certified 304 or 316 stainless steel materials and components, 100% TIG welding and hygienic polishing,to ensure food hygiene level, and strictly undergo strict production process Quality control, inspectionp; and pressure testing, form detailed inspection records, and send out with the goods. ZR BREW guarantees free delivery of all valves and fittings.

Product Paramenters

	Interior	Jacket
Material	SUS304	SUS304
Working pressure (Mpa)	0.2 （30psi）	0.2（30psi）
Design pressure (Mpa)	0.3 （45psi）	0.4 （60psi）
Effective volume	1000l
Total volume	1250l
Tank size	Ø1260*2600
Cooling meth	Glycol water cooling
Insulation material	Polyurethane
Insulation thickness（mm）	80
Inter tank thickness （mm）	3.0
Outer tank thickness（mm）	2.0
Cone angle	60°
Note:1Barrel (BBL) =117 Liter 1Hl=100 Liter 1Gallon=3.7854 Liter 145psi=1MPa

Specifications and models

Sepcification selection	Total volume(L)	Cooling ares(m2)	Diameter(mm)	Height
ZR-FV-100	125	0.86	650	1500
ZR-FV-200	250	1.3	850	1600
ZR-FV-300	375	1.9	860	2000
ZR-FV-400	500	2.1	960	2000
ZR-FV-500	625	2.2	960	2200
ZR-FV-1000	1250	3.4	1260	2600
ZR-FV-1500	1875	4.5	1460	2850
ZR-FV-2000	2500	5.4	1600	3100
ZR-FV-2500	3125	6.0	1800	3400
ZR-FV-3000	3750	6.7	1800	3600
ZR-FV-4000	5000	7.6	1900	4000
ZR-FV-5000	6250	8.5	2200	3800

1000l fermenter standard configuration

Dished and conical head are available

Pressure side manhole door

TC connected CIP arm with 360° coverage spraying ball

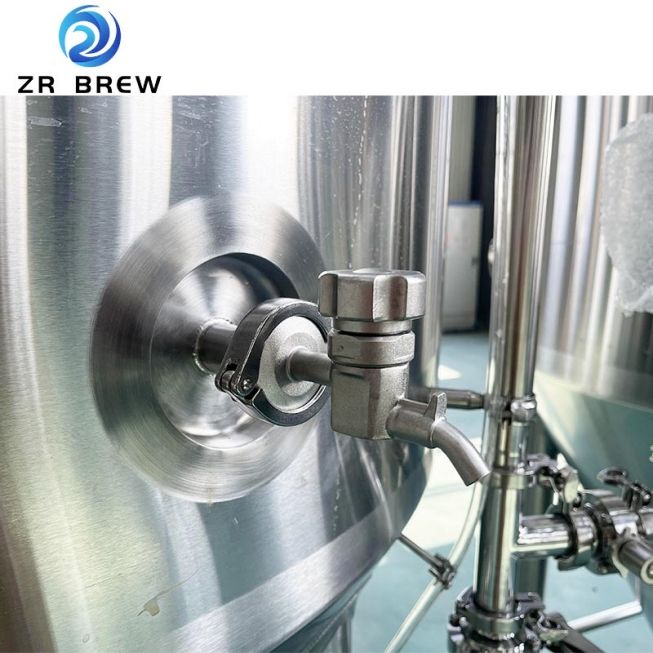

Sanitary sample valve

Safety valve on top

Mechanical safe valve PVRV 2.2 bar on CIP arm

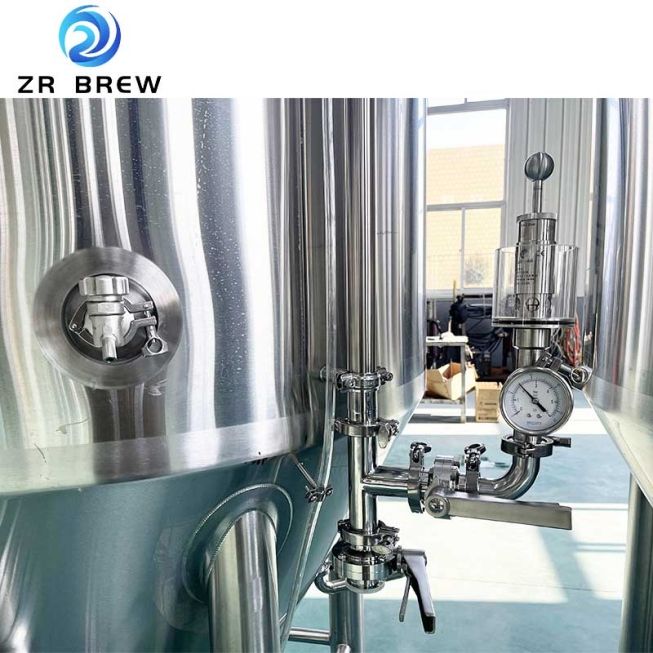

Diaphragm pressure gauge on CIP arm

Horizontal rotating racking arm and port on cone with butterfly valve

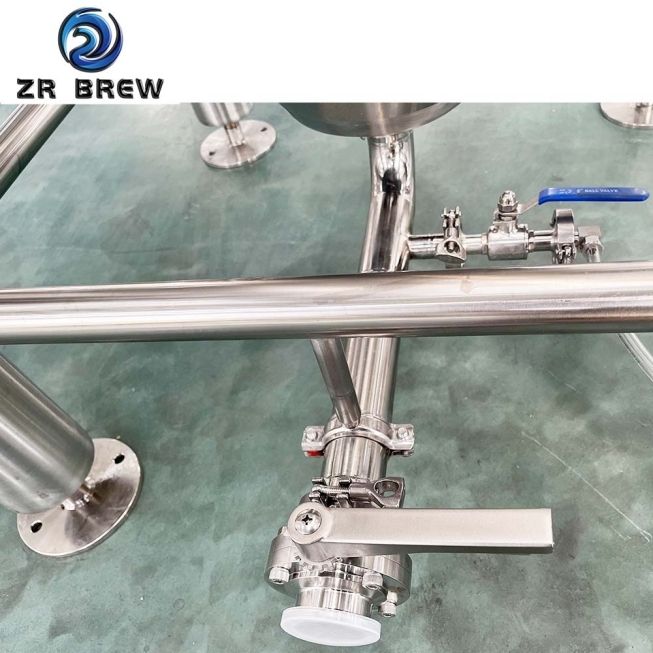

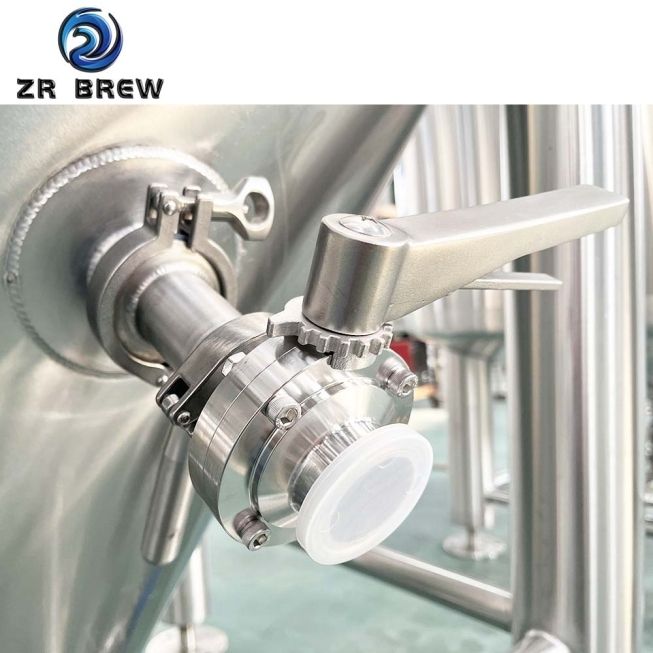

Tri clamp discharge arm with butterfly valve

Dry hopping port 6-8'' TC with solid end cap

Thermowell for high accuracy temperature sensor

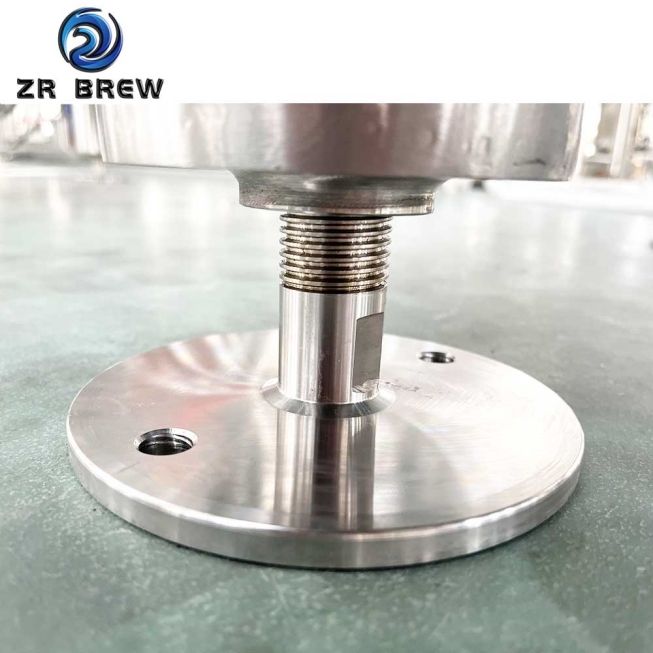

4pcs completely SUS304 heavy duty legs with leveling pad and legs support

Complete valves, fittings and all parts

100% TIG welding with pure argon gas shield

Interior Finish: Sanitary 2B finish, Pickled and Passivated; (8K Mirror finish optional)

Exterior Finish: Oil brushed finish（2B, 8K Mirror finish optional)

Interior full polished to 0.2~0.4 μm without dead corner

Glycol Jacket: Dimpled plate on cone and side

1000l fermenter optional configuration

Separate blow-off pipe & CIP

Carbonation stone for CO2

Display temperature gauge in front

Liquid level display on the sidewall

Advantage of configuration

For easy yeast excretion, designed with a 60° cone angle

Polishing/drawing/mirror finish/pickling passivation optional

Shadowless manholes or top manholes depending on the customer's fermentation process and brewing type.

The headspace is larger, and the covering headspace volume is calculated separately and additionally.

Jacket test by water and gas, 5bar/75psi for 1hour, 3.5bar/52psi for 48 hours,Tank leakage test by water and gas, 4bar/60psi for 1hour, 2.5bar/37.5psi for 48 hours,all data will be recorded to facilitate strict quality control and management

For flexible conveying of beer, it is equipped with a swivel rocker

To ensure tank alignment and leveling, it is equipped with adjustment bolts
