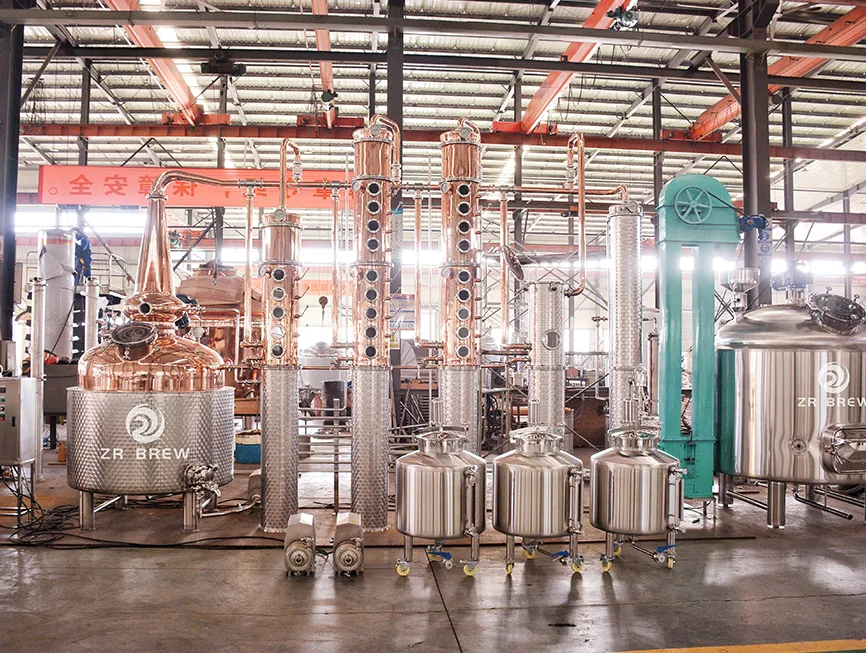

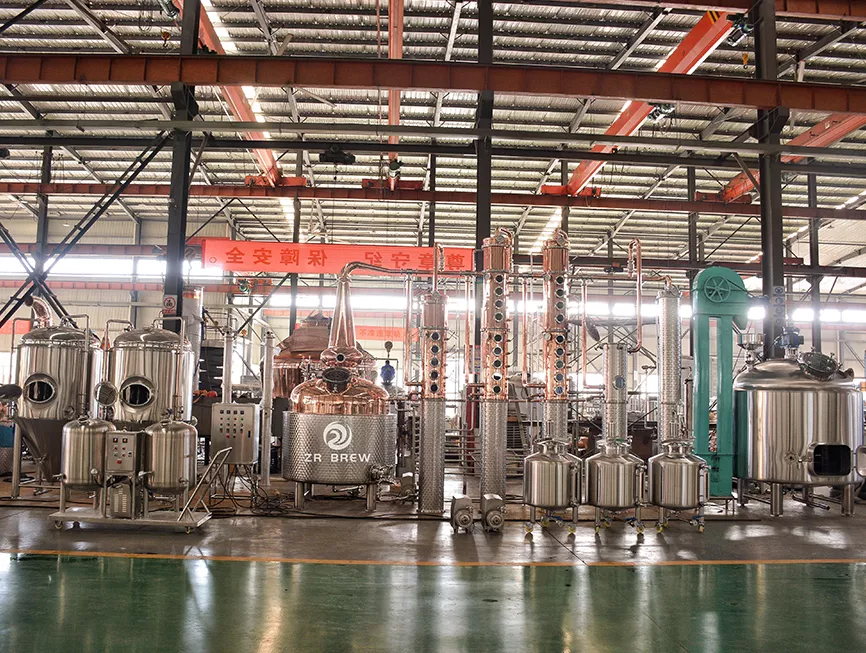

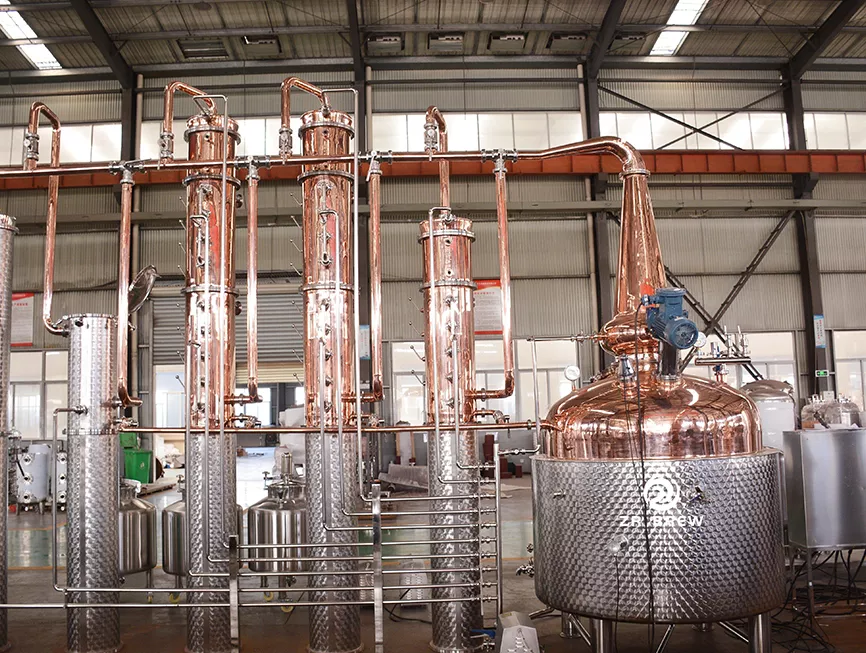

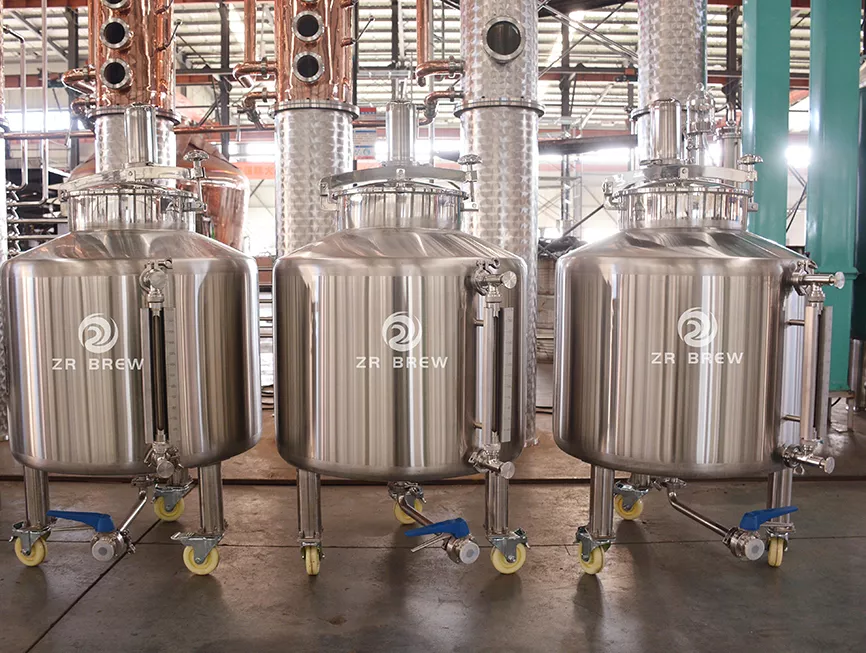

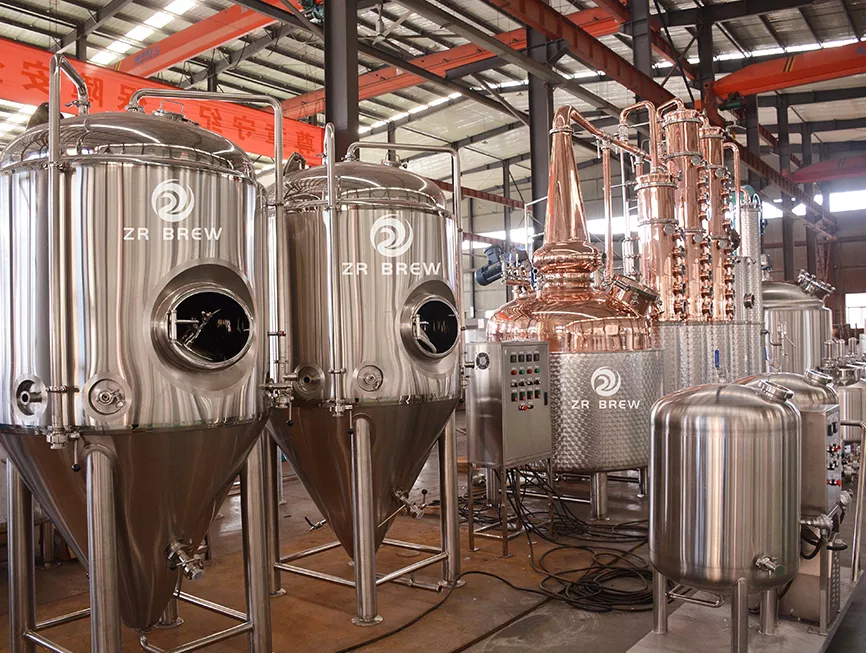

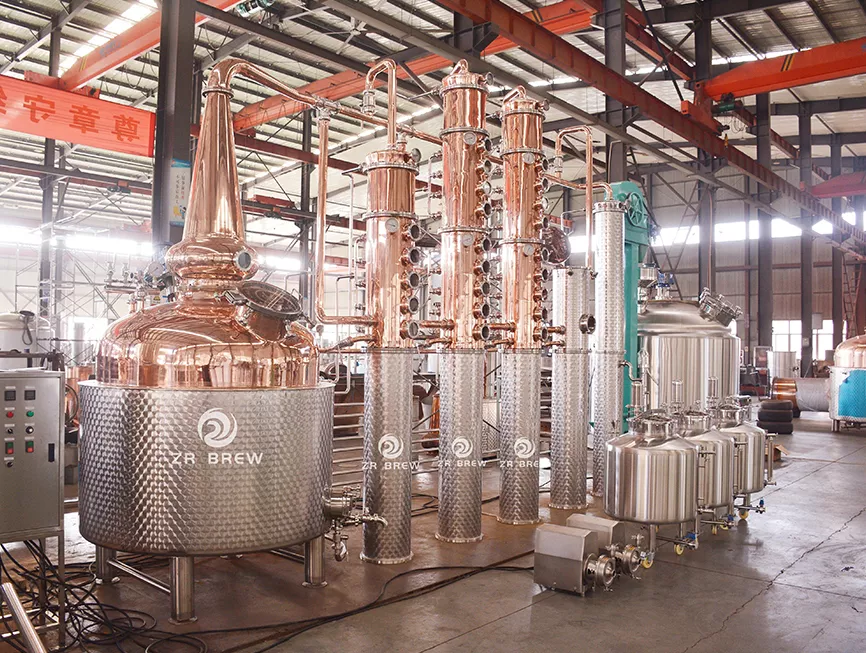

1500L Vodka Distiller

1500L Vodka Distiller

1500L Vodka Distiller

1500L Vodka Distiller

1500L Vodka Distiller

1500L Vodka Distiller

1500L Vodka Distiller

1500L Vodka Distiller

ModelZR-DT-1500L
Production1500L/Batch, 95% high alcohol can be distilled
CapacityEffective volume: 1500L
MaterialSUS304   SUS316  Red Copper
UasgeWhisky   Brandy   Rum  Gin   Vodka   Others
ApplicationHome   commercial
Heating wayElectric heating   Steam heating   Direct fire heating
Control SystemFully automated with PLC Siemens   Semi-Automated with PID Schneider
VoltageThree-phase/380(220, 415,480…)v/50(60)Hz   Single phase/220(110, 240…)v/50(60)Hz
Note:1Barrel (BBL) =117 Liter      1Hl=100 Liter     1Gallon=3.7854 Liter


Advantage of steam heating way

-----------------------------------------------------------------------------------------------------------------



▶ The steam temperature is constant, the heating area is large and evenly heated, and the pot is not sticky;

▶ Control the temperature by controlling the pressure, quickly and accurately reach the set temperature

▶ High heat exchange coefficient, the same heat exchange demand, the required heat exchange area is smaller, which can reduce equipment investment

▶ Steam heating equipment is easy to clean

▶ Distilled spirits tastes good

▶ The equipment investment cost is high, but the operating cost is twice as low as that of electric heating

▶ Suitable for areas where natural gas, LPG is plentiful and cheap

1500L Distillery Equipment Standard Configuration

-----------------------------------------------------------------------------------------------------------------

▶ Crushing system

▶ Feeding system

▶ 1500L Mash/Lauter tun With stirring, sieve plate, manhole, insulation layer and plate heat exchanger

▶ 1500L Fermentation Tank

▶ Fermentation liquid delivery pump

▶ 1500L distiller: stainless steel, copper, stainless steel and copper are available, equipped with a stirrer,steam heating way, glass manhole

▶ 24 Floors distillation column: stainless steel, copper, stainless steel and copper are available, Sight glass, CIP and thermometer at every plate.

▶ 3 Storage tank

▶ Steam generator

▶ Cooling System

▶ CIP cleaning system

▶ PID control system


TypesVolumeComponent
Whisky distiller50-5000LStill pot, swan neck, condenser, CIP, pipe system
Vodka distiller50-5000LStill pot , onion head, column, dephlegmator, condenser, pipe system
Brandy distiller50-5000LStill pot, onion head, dephlegmator, column, condenser ,CIP, pipe system
Rum distiller50-5000LStill pot, column, condenser, CIP, pipe system
Gin distiller50-5000LStill pot, column, gin basket, condenser, CIP, pipe system
Multi-spirits distiller200-5000LStill pot, onion head, dephlegmator, column, gin basket, condenser, CIP, collecting tank


How to control the temperature of the fermenter

A:

The PLC or digital displayer is connected to the PT100 temperature sensor installed on the tank through the signal line to control the temperature.

What factors need to be considered when choosing a set of bar beer brewing equipment

A:

1. The consumption of beer
2. Site conditions
3. Estimated investment
4. Types of winemaking
5. Daily brewing batches
6. Brewing process
7. Wine selling equipment
8. The aesthetics of the equipment
