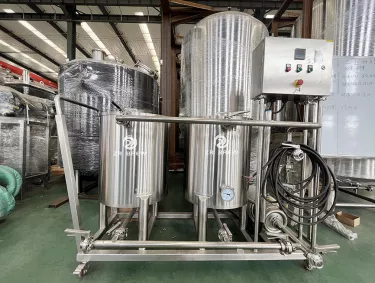

CIP System

CIP System

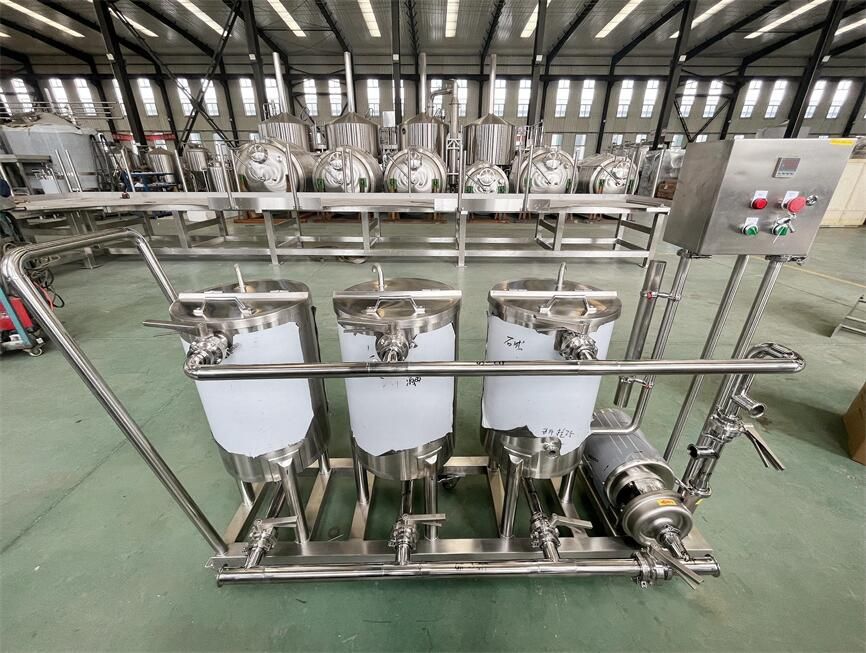

3-Tank CIP System

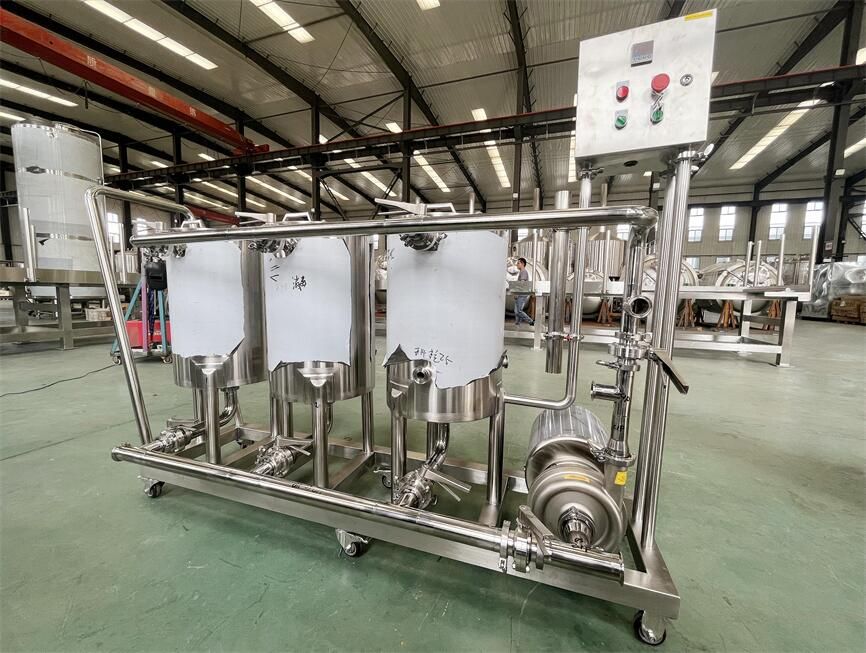

3-Tank CIP System

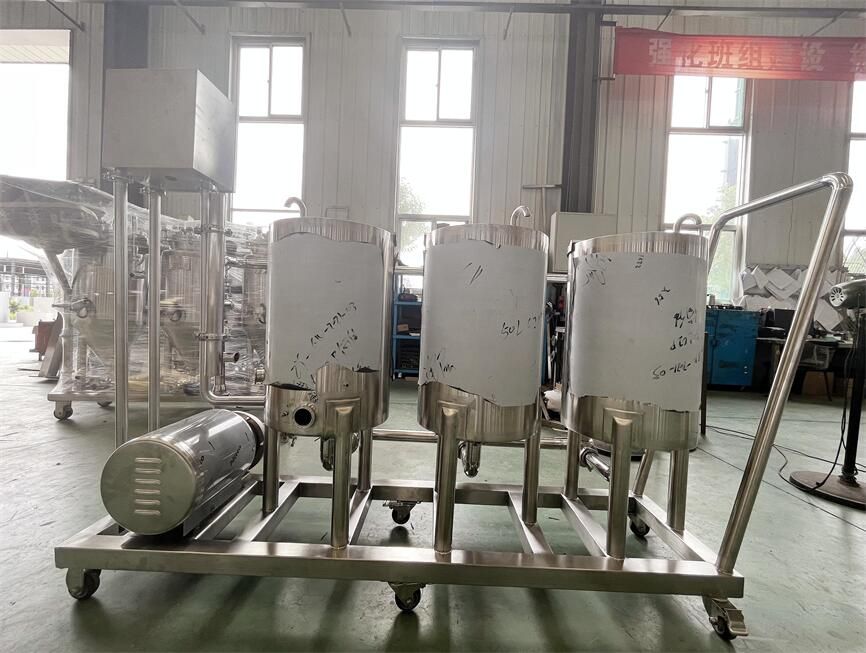

3-Tank CIP System

3-Tank CIP System

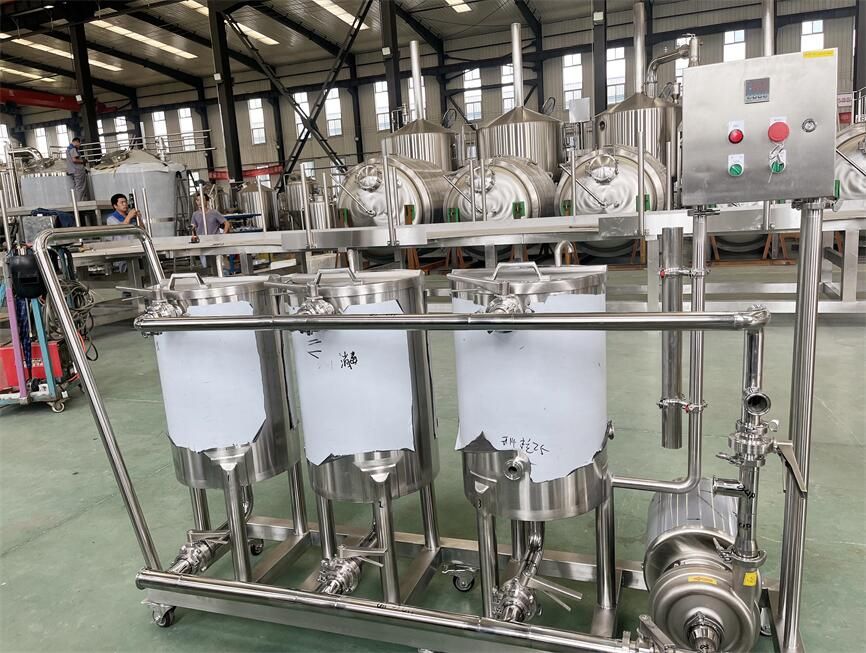

3-Tank CIP System

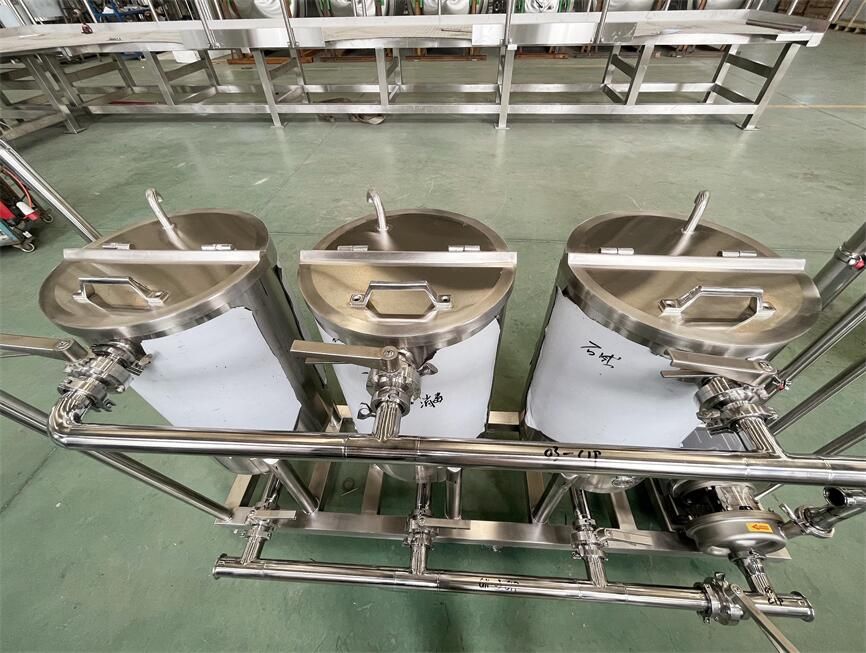

3-Tank CIP System

3-Tank CIP System

3-Tank CIP System

Specifications


ItemProduction capacity(L)SizeMatch Equipment
ZR-CIP-50L50L2200x550x115050-700L
ZR-CIP-100L100L2400x550x1200800-1200L
ZR-CIP-150L150L2500x600x13001300-1700L
ZR-CIP-200L200L2700x650x12501800-2500L
ZR-CIP-300L300L2800x750x13002500-3000L


Standard configuration


Tanks and Cart:

  • Caustic tanks,acid tanks and hot water tanks with bottom outlets

  • made out of stainless steel framing to accommodate the three tanks, the heating tube, and the control panel. Cart has four wash down casters for mobility.

  • In-line heater for caustic and hot water

  • Separate sanitizer line to prevent cross contamination with the caustic

  • Directional valves for recirculating and transferring to the tanks to be cleaned

  • CIP output connection via 1.5” TCCIP return connection via 1.5” tri clamp


Heating System:

  • The heating pipe is located in the caustic tank and hot water tank


Control Panel :

  • Temperature controller (for controlling the recirculation temperature)

  • In tube liquid present sensor / temperature probe assembly (prevents element from running dry)

Pump:

  • Variable speed CIP pumps with wash down motor mounted on the frame

  • Standard 50, 100, 150, 200 and 300L caustic tanks. Custom sizes available for any size brew house - just ask!

  • Innovative in-line heater maintains caustic temp to set temperature

  • A separate sanitizer line prevents cross-contamination between the sanitizer and caustic fluids

  • Directional valves for recirculating and transferring to the brew tank

  • 1.5" tri-clamp connections standard on all sizes

  • Heating element is GFCI protected for the safety of you, the brewery, as well as the equipment

  • Digital temperature controller

  • Variable speed pump

  • Inline liquid sensor & temperature probe assembly prevents dry-firing of heating elements

  • CE/UL/cUL listed assembly

Advantage


  • Minimizes Mistakes: Automating cleaning reduces the chance of human error that can contribute to an unsafe product.

  • Keeps Employees Safe: Reduces chemical exposure by containing cleaning solutions within the system.

  • More Production Time: As less production time is lost to cleaning, more time is spent making product.

  • Product Quality: Reliable and repeatable cleaning means sustainable product quality and consistency. Less contamination means fewer product recalls and higher brand confidence.

  • Utility Savings: Water and energy usage is reduced through repeatable cycle control.

How to control the temperature of the fermenter

A:

The PLC or digital displayer is connected to the PT100 temperature sensor installed on the tank through the signal line to control the temperature.
