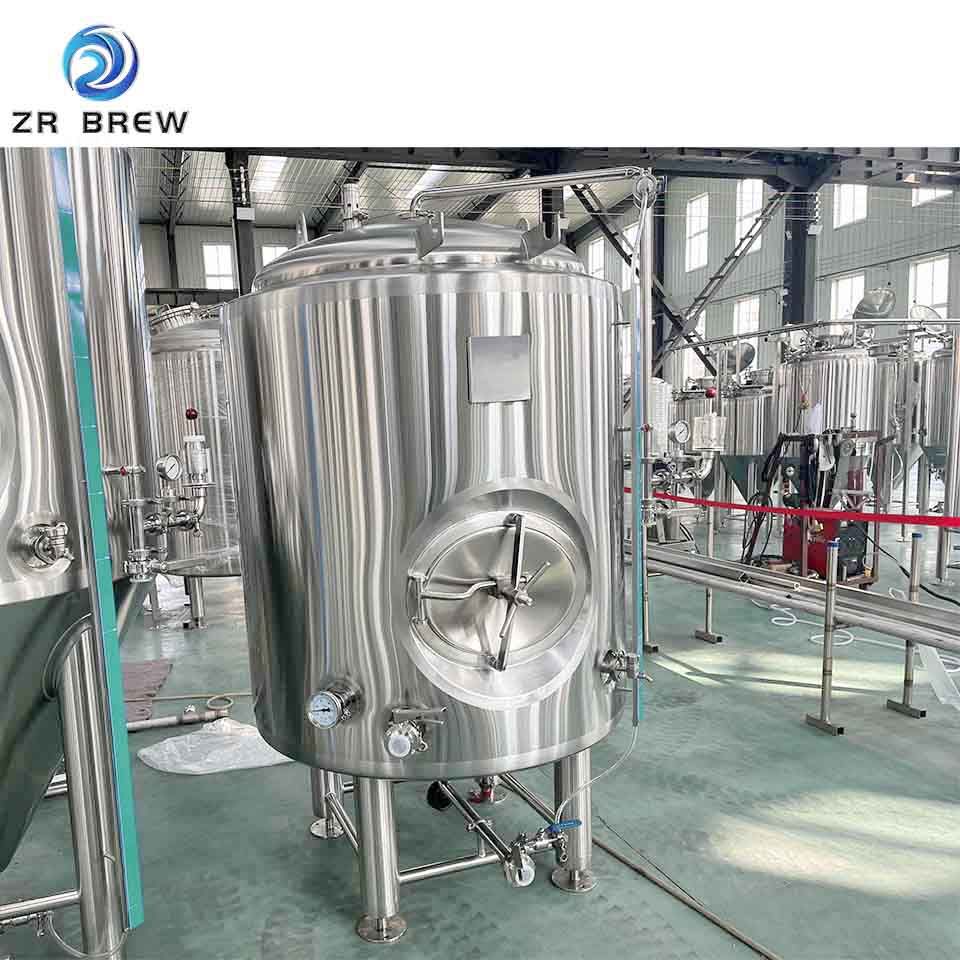

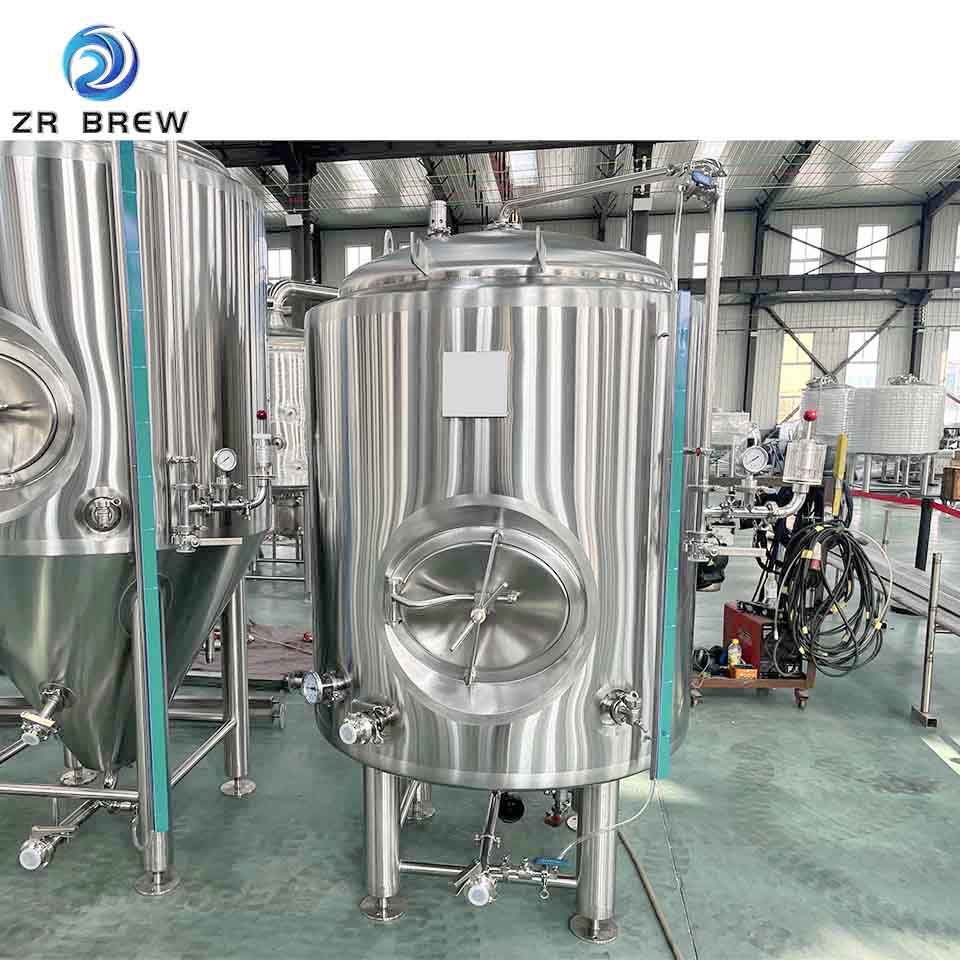

7bbl beer bright tank

7BBL bright beer tank is manufactured by ZR BREW,we can customize beer fermentation tanks of different specifications according to customer needs. All fermentation tanks are made of certified 304 or 316 stainless steel materials and components, 100% TIG welding and hygienic polishing,to ensure food hygiene level, and strictly undergo strict production process Quality control, inspectionp; and pressure testing, form detailed inspection records, and send out with the goods. ZR BREW guarantees free delivery of all valves and fittings.

Product Paramenters

Specifications and models

10BBL bright beer tank standard configuration

 Dished and conical head are available

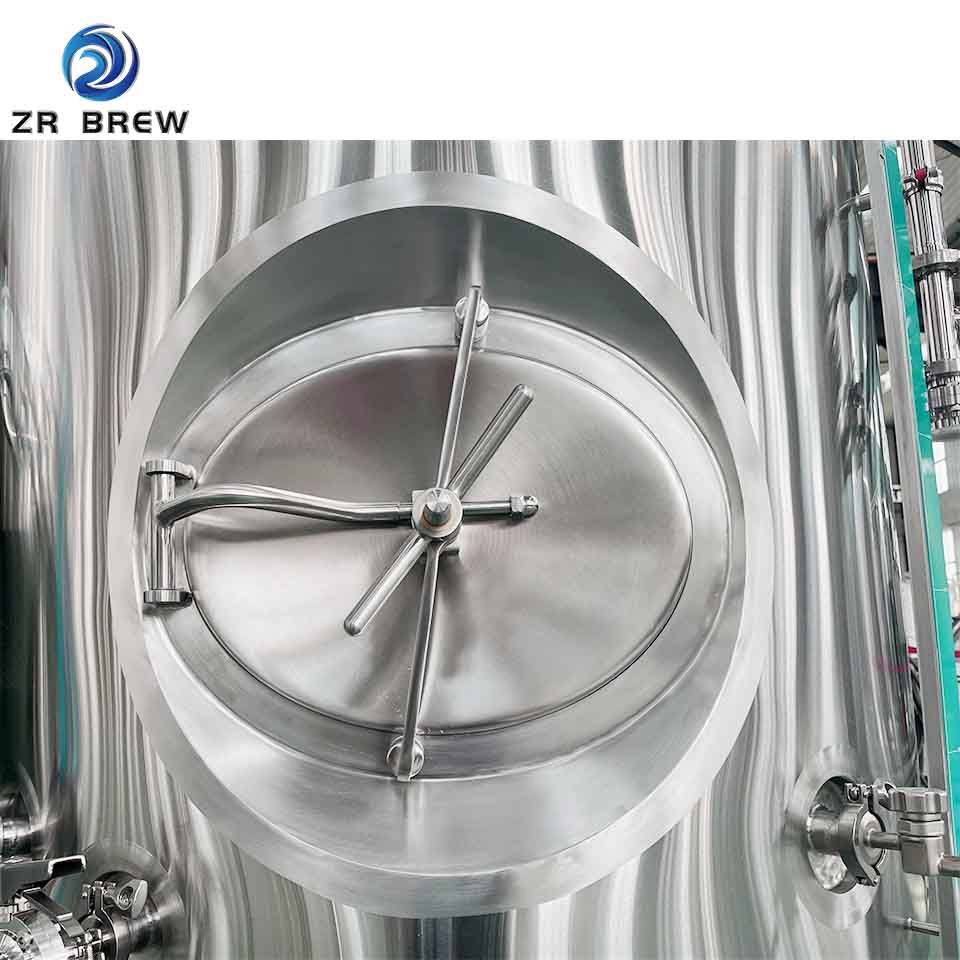

 Pressure side manhole door

 TC connected CIP arm with 360° coverage spraying ball

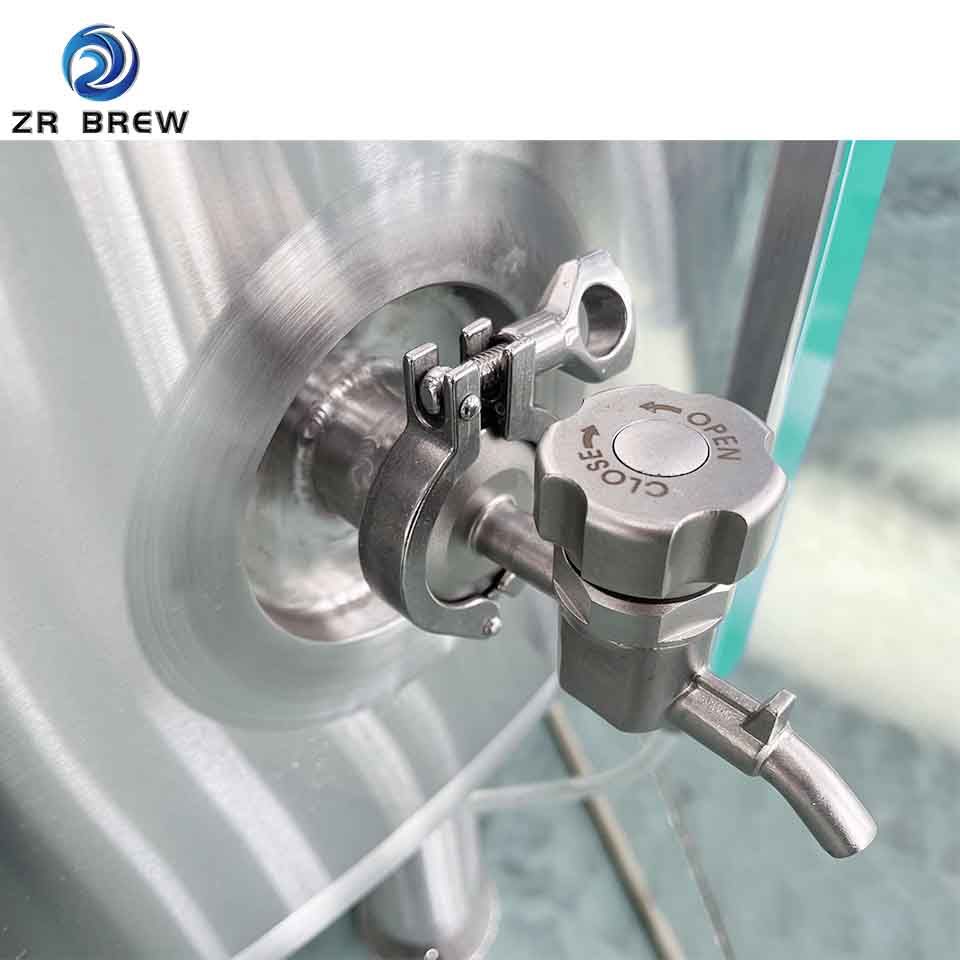

 Sanitary sample valve

 Safety valve on top

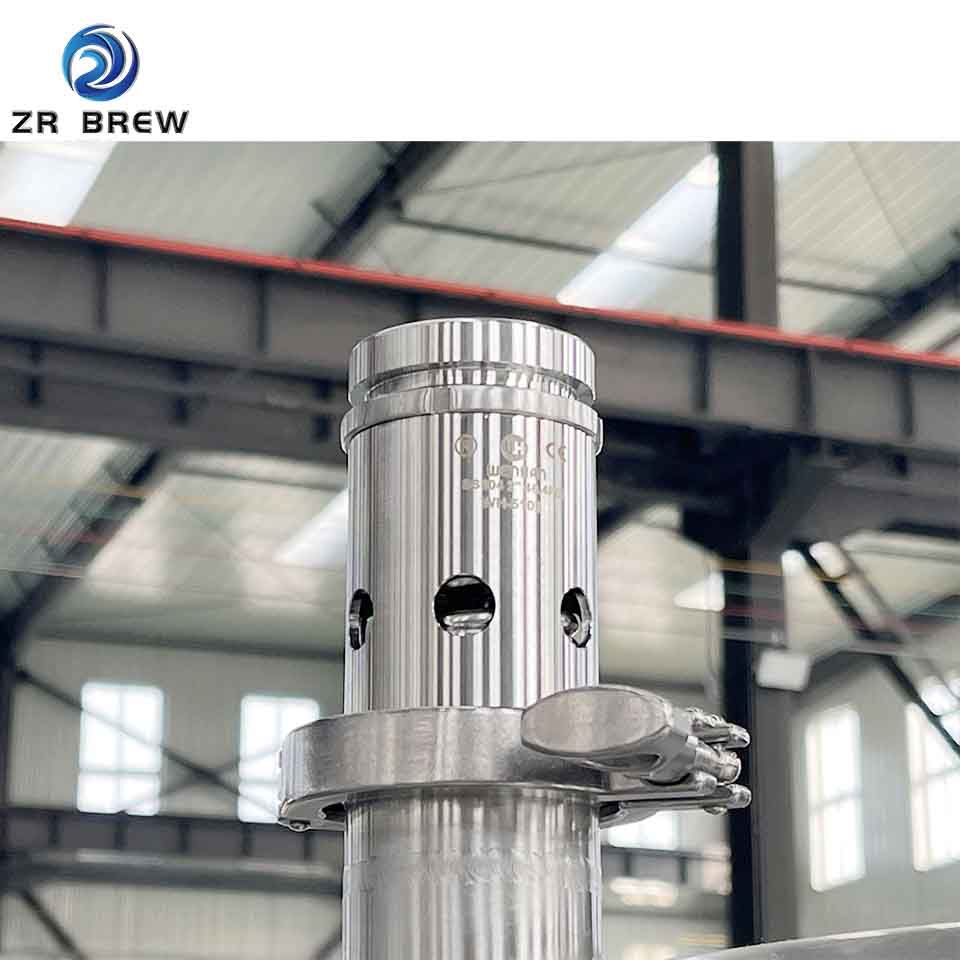

 Mechanical safe valve PVRV 2 bar on CIP arm

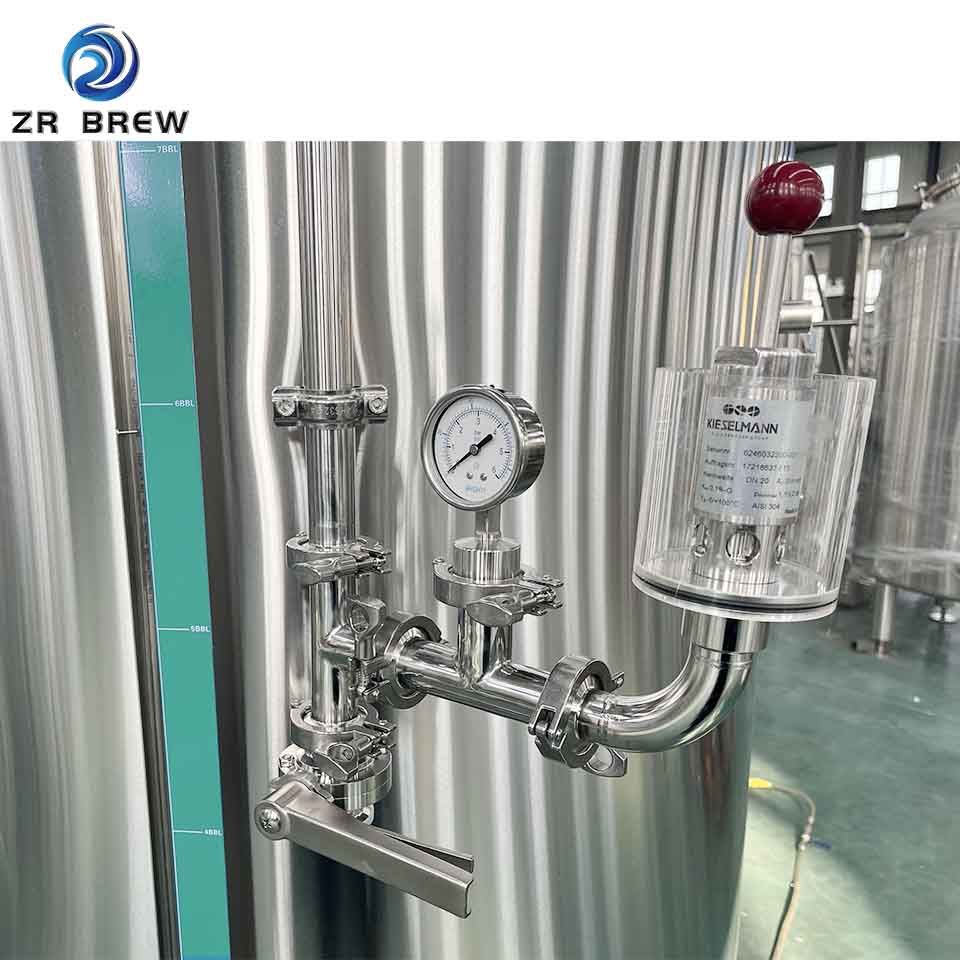

 Diaphragm pressure gauge on CIP arm

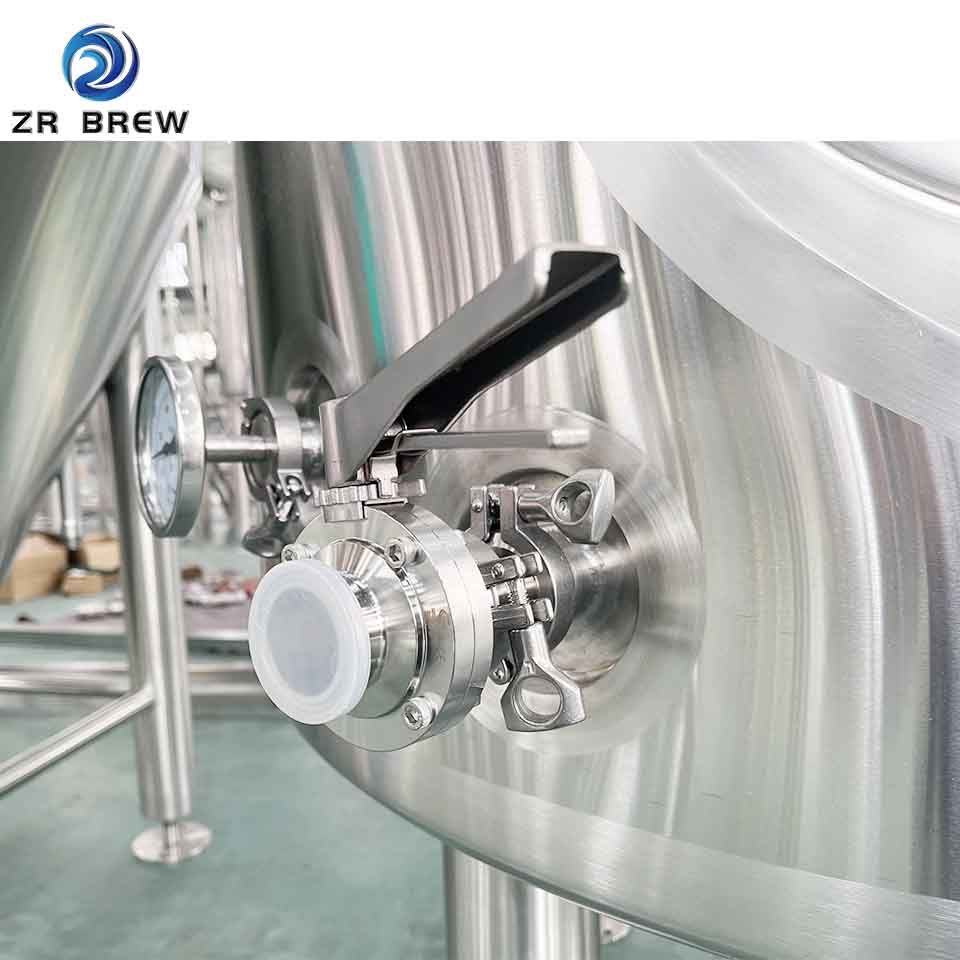

 Tri clamp discharge arm with butterfly valve

 Carbonation stone for CO2

 Liquid level display on the sidewall

 Thermowell for high accuracy temperature sensor

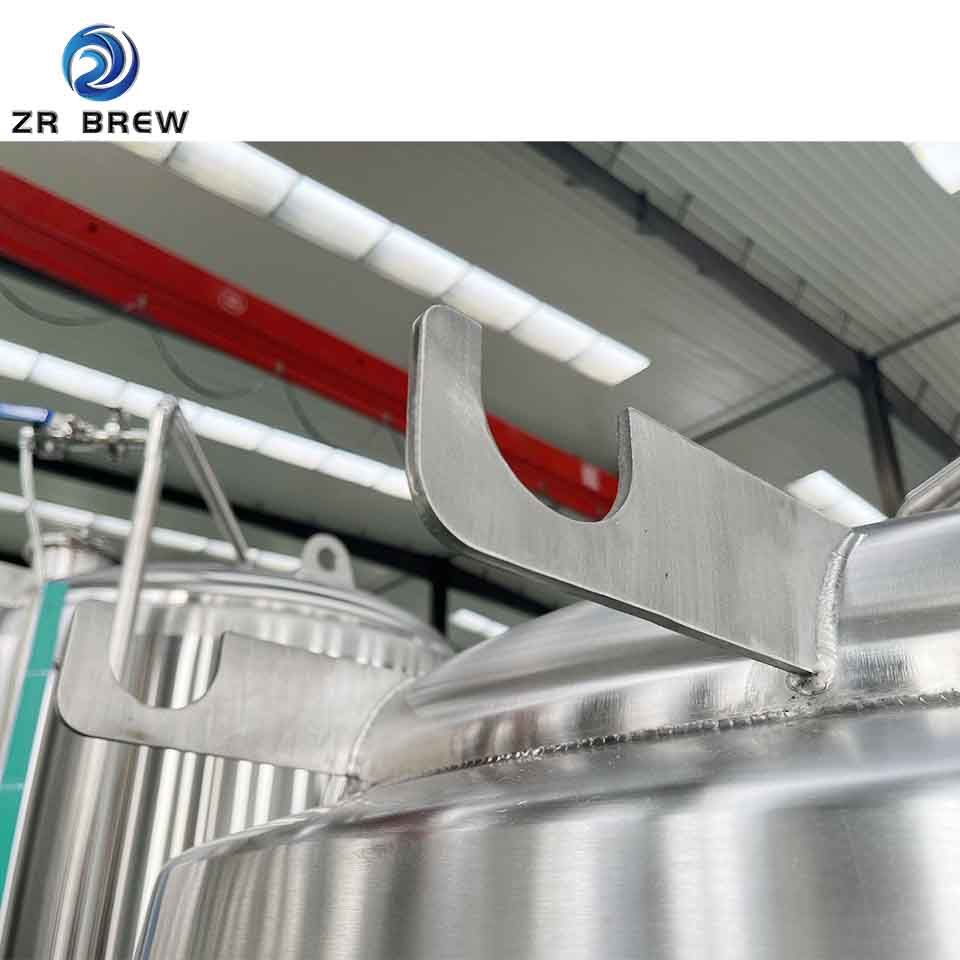

 Top hooks for hanging ladders

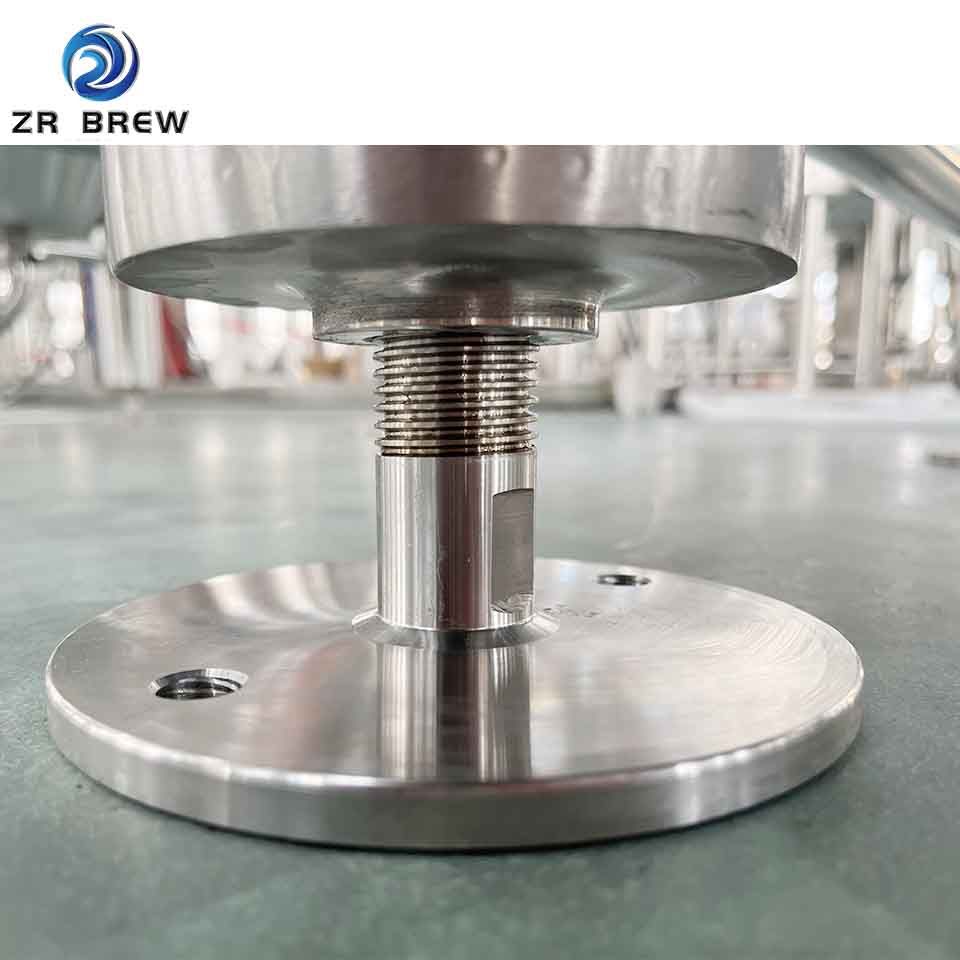

 4pcs completely SUS304 heavy duty legs with leveling pad and legs support

 Complete valves, fittings and all parts

 100% TIG welding with pure argon gas shield

 Interior Finish: Sanitary 2B finish, Pickled and Passivated; (8K Mirror finish optional)

 Exterior Finish: Oil brushed finish（2B, 8K Mirror finish optional)

 Interior full polished to 0.2~0.4 μm without dead corner

 Glycol Jacket: Dimpled plate on cone and side

10BBL bright beer tank  optional configuration

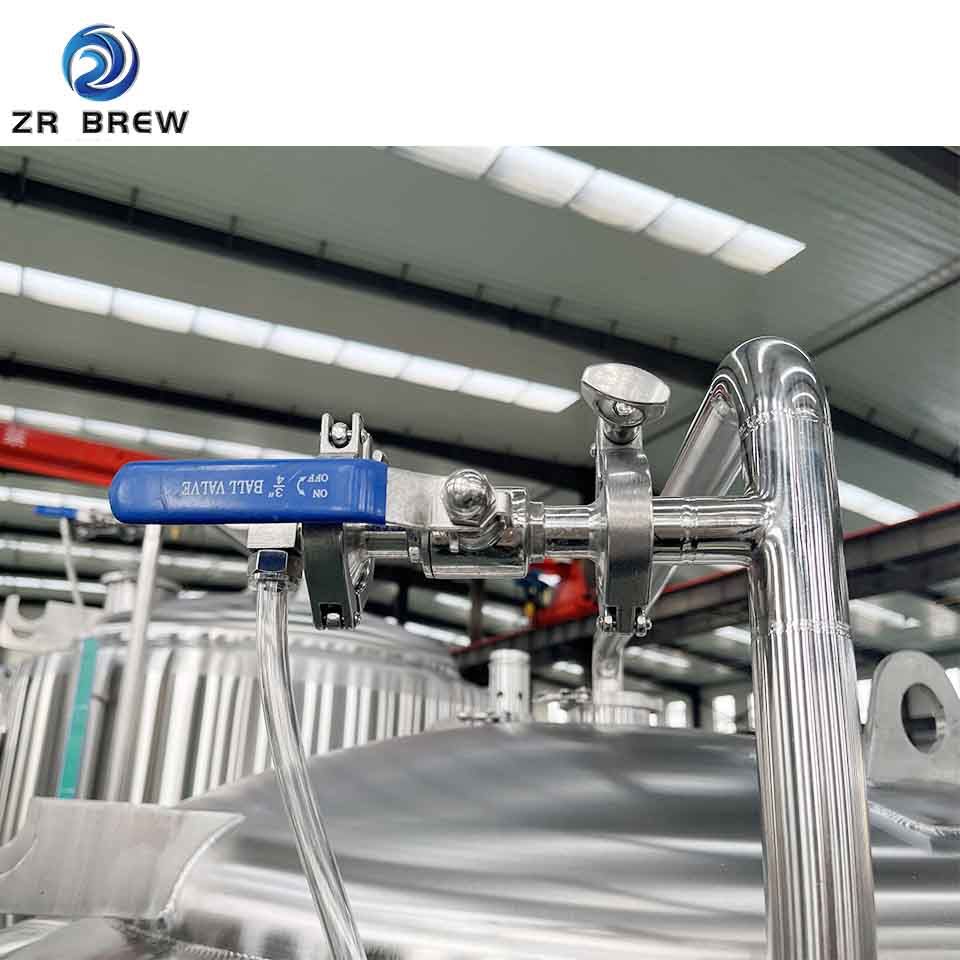

 Separate blow-off pipe & CIP

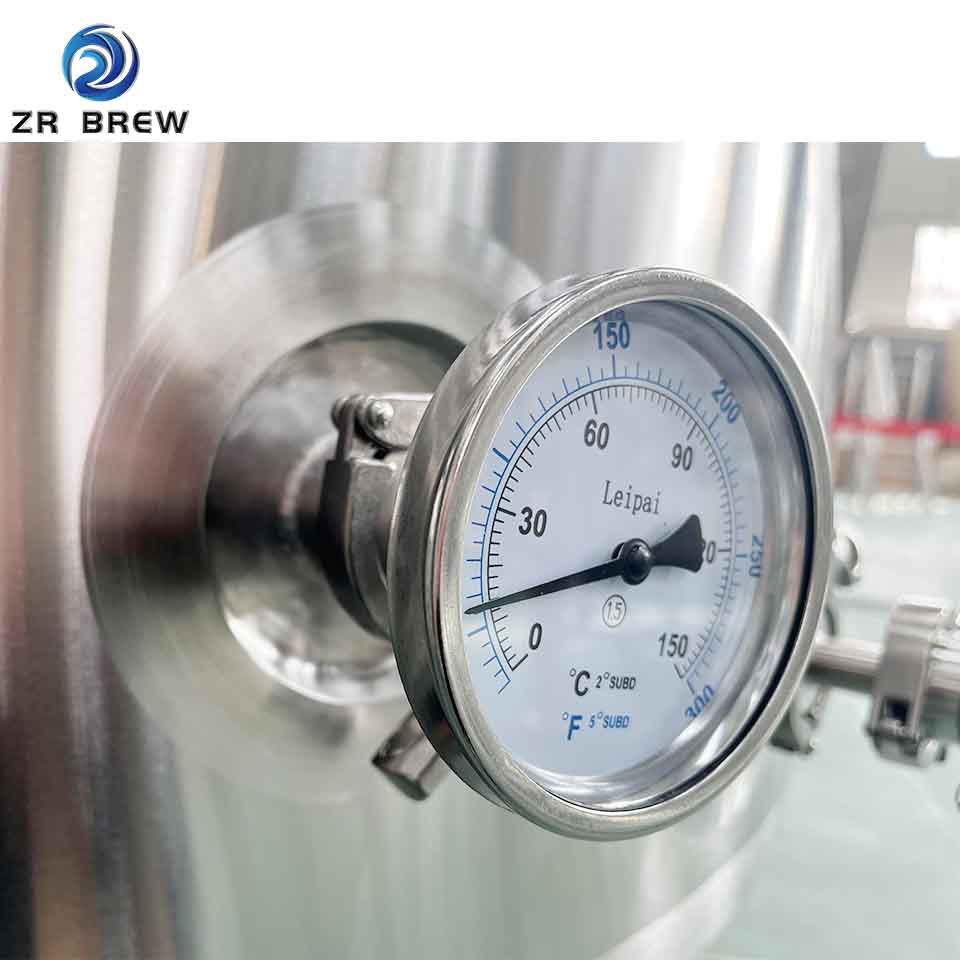

 Display temperature gauge in front

Advantage of configuration

 Polishing/drawing/mirror finish/pickling passivation optional

 Shadowless manholes or top manholes depending on the customer's fermentation process and brewing type.

 The headspace is larger, and the covering headspace volume is calculated separately and additionally.

 Jacket test by water and gas, 5bar/75psi for 1hour, 3.5bar/52psi for 48 hours,Tank leakage test by water and gas, 4bar/60psi for 1hour,   2.5bar/37.5psi for 48 hours,all data will be recorded to facilitate strict quality control and management

 Easy to operate with dedicated ladder

 For easy lifting, it is equipped with lifting lugs.

 For flexible conveying of beer, it is equipped with a swivel rocker

 To ensure tank alignment and leveling, it is equipped with adjustment bolts
