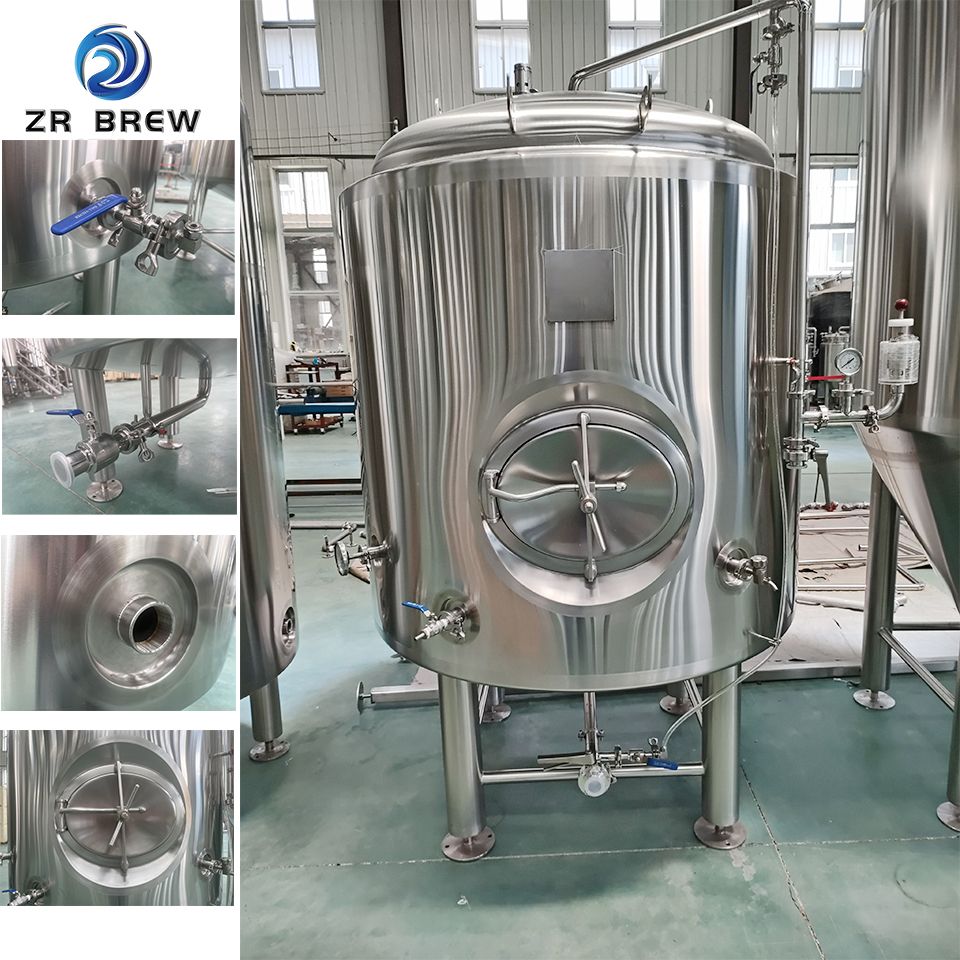

10BBL bright beer tank is manufactured by ZR BREW,we can customize beer fermentation tanks of different specifications according to customer needs. All fermentation tanks are made of certified 304 or 316 stainless steel materials and components, 100% TIG welding and hygienic polishing,to ensure food hygiene level, and strictly undergo strict production process Quality control, inspectionp; and pressure testing, form detailed inspection records, and send out with the goods. ZR BREW guarantees free delivery of all valves and fittings.
Product Paramenters
| Interior | Jacket | |
| Material | SUS304 | SUS304 |
| Working pressure (Mpa) | 0.2 （30psi） | 0.2（30psi） |
| Design pressure (Mpa) | 0.3 （45psi） | 0.4 （60psi） |
| Effective volume | 10BBL | |
| Total volume | 8.4BBL | |
| Tank Size (mm) | Ø1260*2600 | |
| Cooling meth | Glycol water cooling | |
| Insulation material | Polyurethane | |
| Insulation thickness（mm） | 80 | |
| Inter tank thickness （mm） | 3.0 | |
| Outer tank thickness（mm） | 2.0 | |
| Note:1Barrel (BBL) =117 Liter 1Hl=100 Liter 1Gallon=3.7854 Liter 145psi=1MPa | ||
Specifications and models
| Sepcification selection | Total volume(L) | Cooling ares(m2) | Diameter(mm) | Height |
| ZR-BBT-100 | 120 | 0.86 | 650 | 1500 |
| ZR-BBT-200 | 240 | 1.3 | 850 | 1600 |
| ZR-BBT-300 | 360 | 1.9 | 860 | 2000 |
| ZR-BBT-400 | 480 | 2.1 | 960 | 2000 |
| ZR-BBT-500 | 600 | 2.2 | 960 | 2200 |
| ZR-BBT-1000 | 1200 | 3.4 | 1260 | 2600 |
| ZR-BBT-1500 | 1800 | 4.5 | 1460 | 2850 |
| ZR-BBT-2000 | 2400 | 5.4 | 1600 | 3100 |
| ZR-BBT-2500 | 3000 | 6.0 | 1800 | 3400 |
| ZR-BBT-3000 | 3600 | 6.7 | 1800 | 3600 |
| ZR-BBT-4000 | 4800 | 7.6 | 1900 | 4000 |
| ZR-BBT-5000 | 6000 | 8.5 | 2200 | 3800 |
10BBL bright beer tank standard configuration
Dished and conical head are available

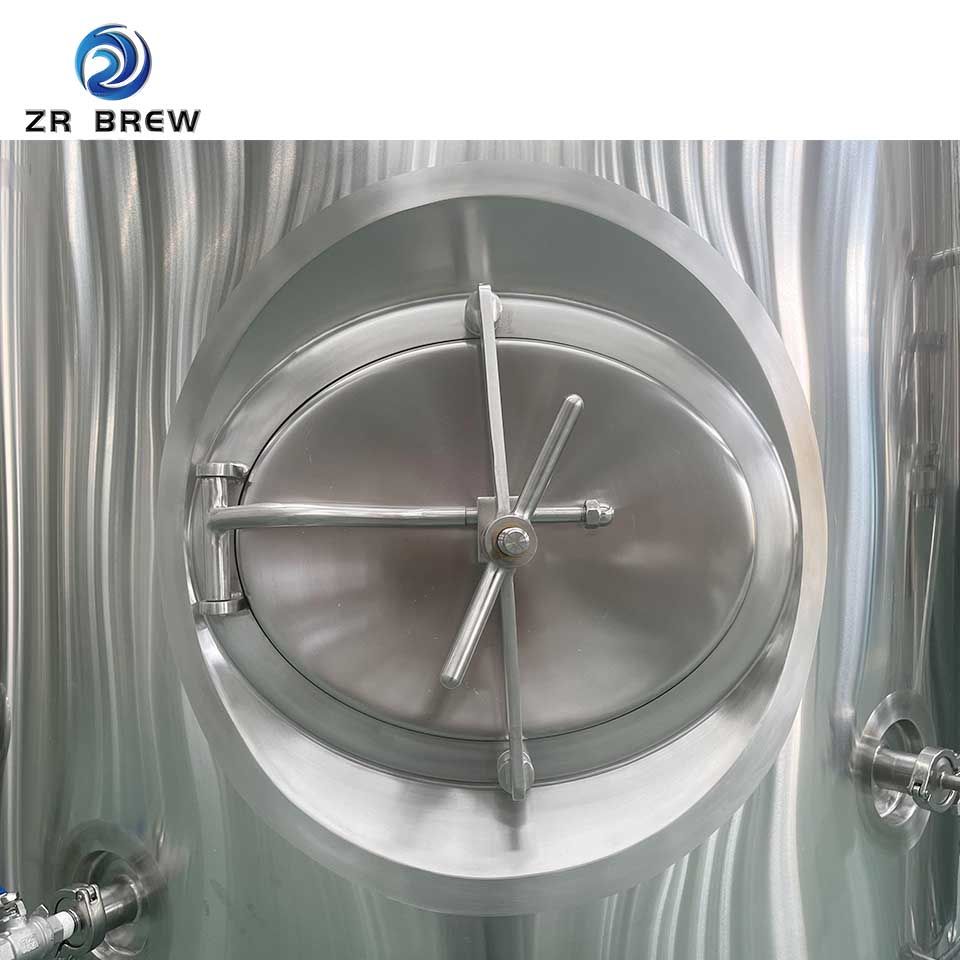

Pressure side manhole door
TC connected CIP arm with 360° coverage spraying ball

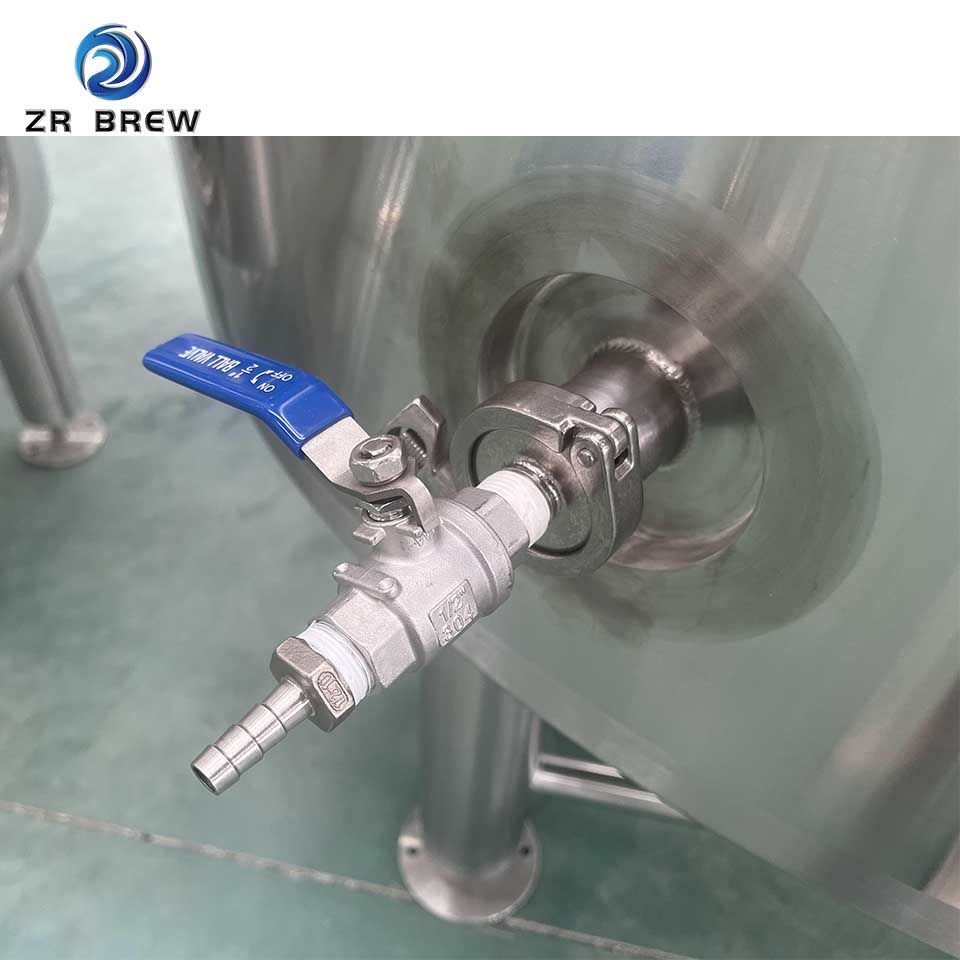

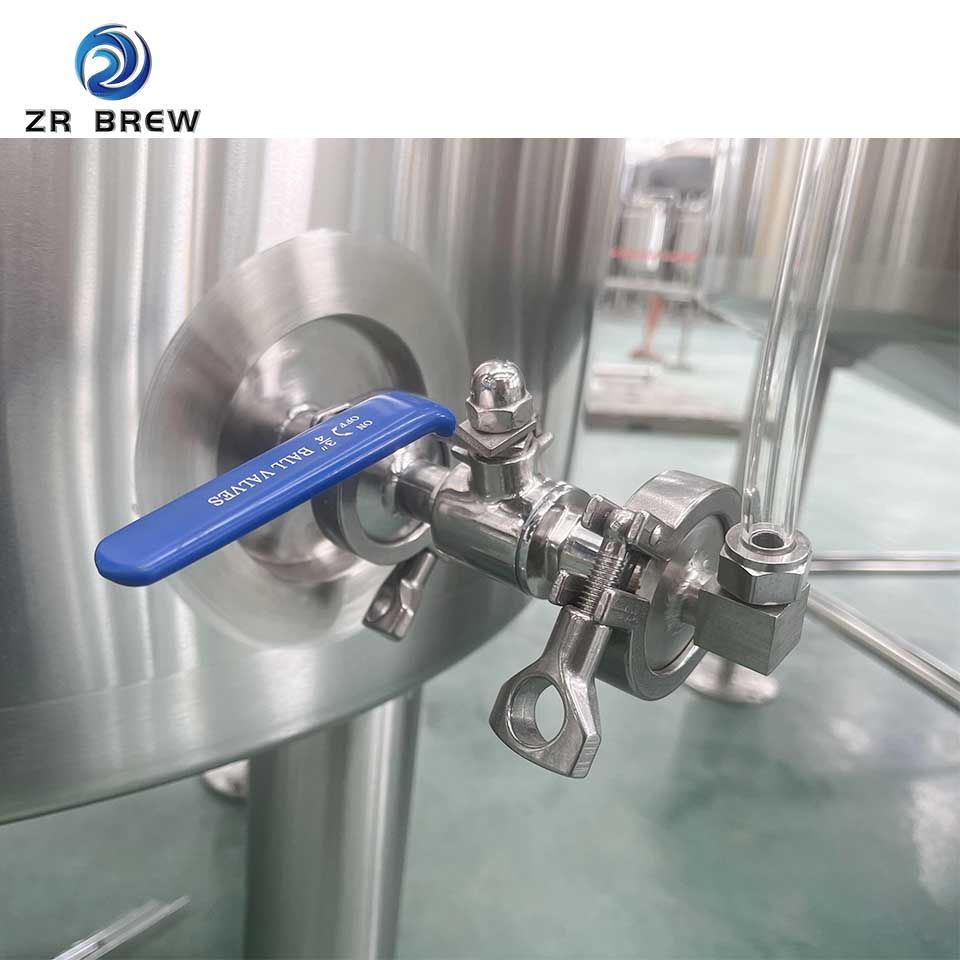

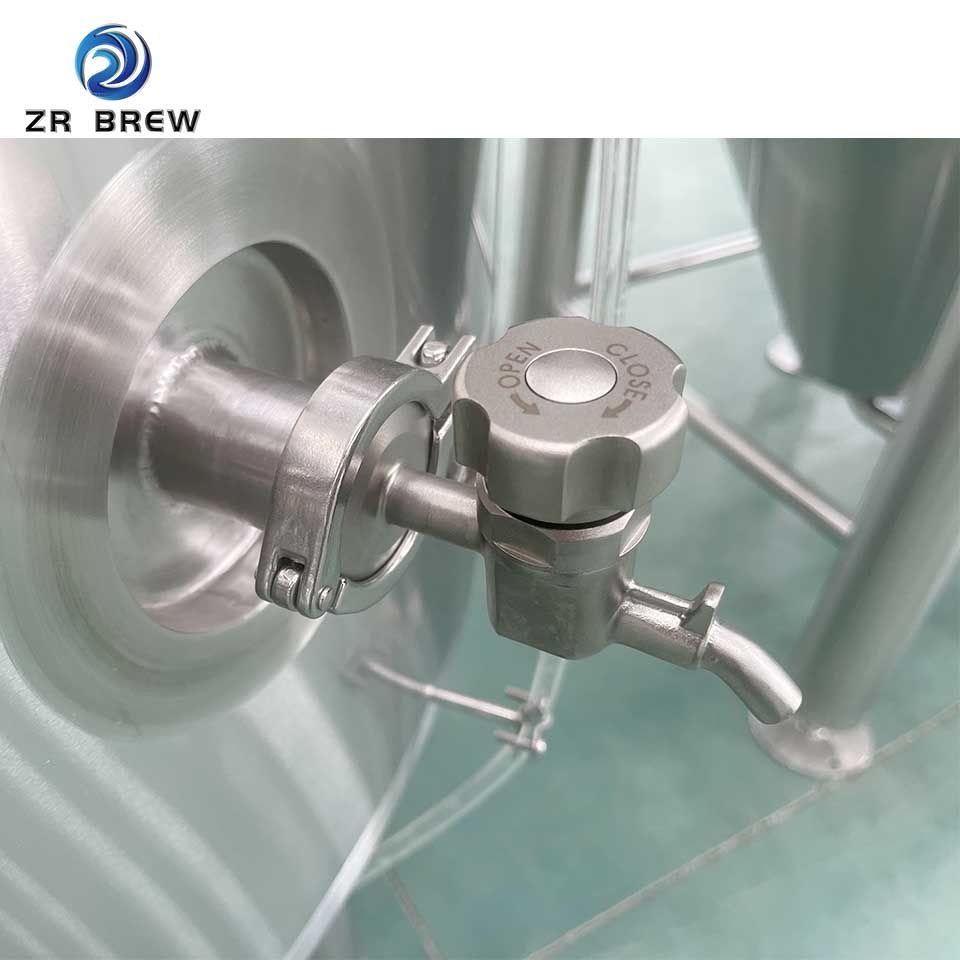

Sanitary sample valve
Safety valve on top

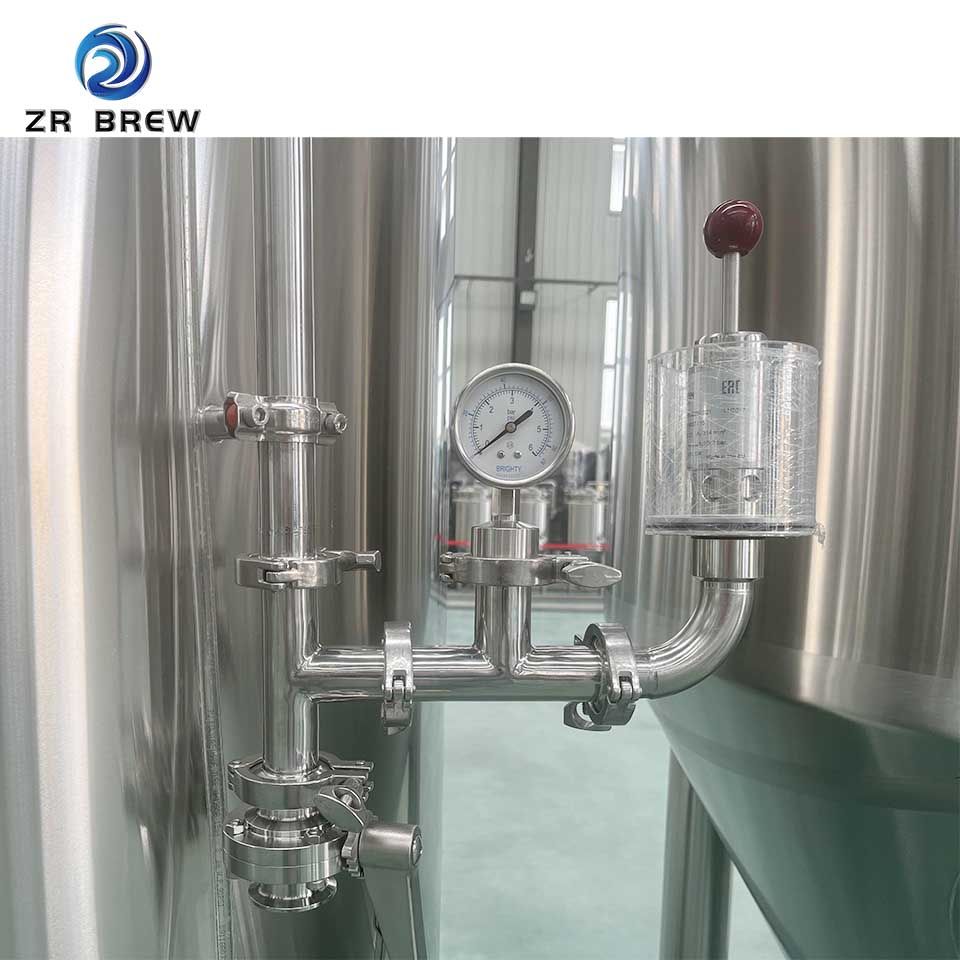

Mechanical safe valve PVRV 2 bar on CIP arm
Diaphragm pressure gauge on CIP arm

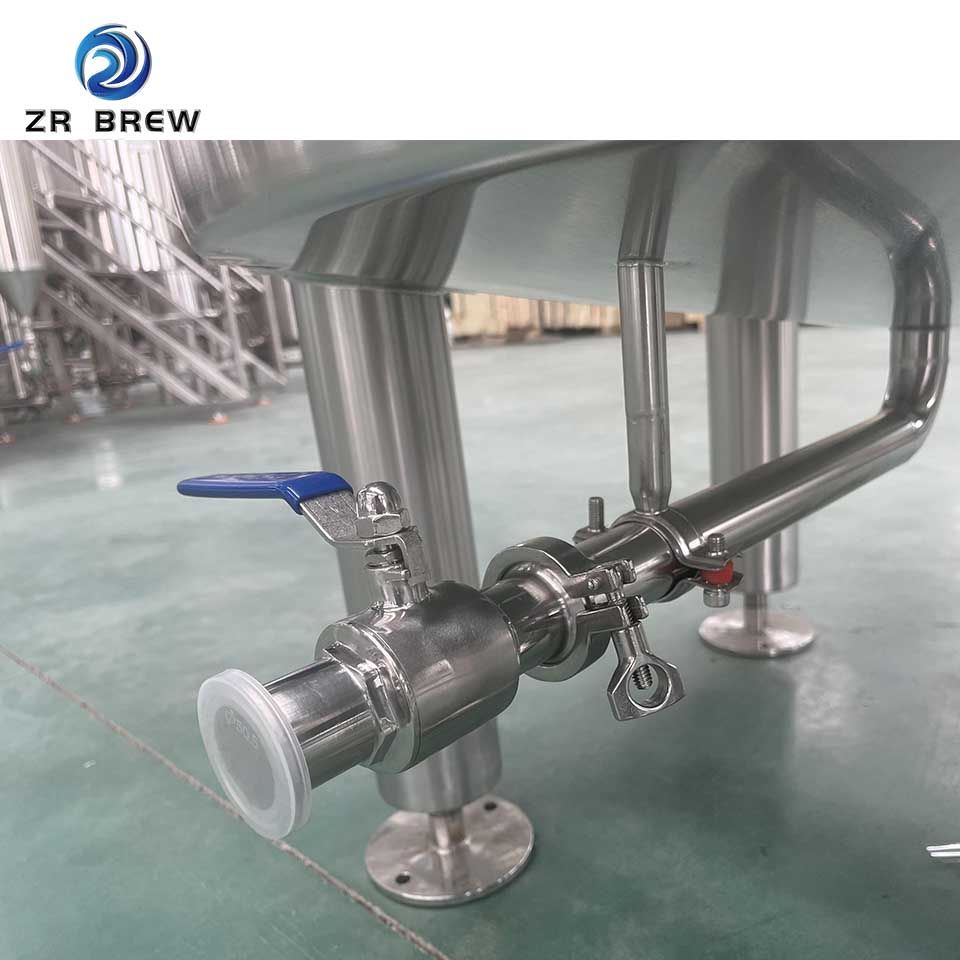

Tri clamp discharge arm with butterfly valve
Carbonation stone for CO2
Liquid level display on the sidewall

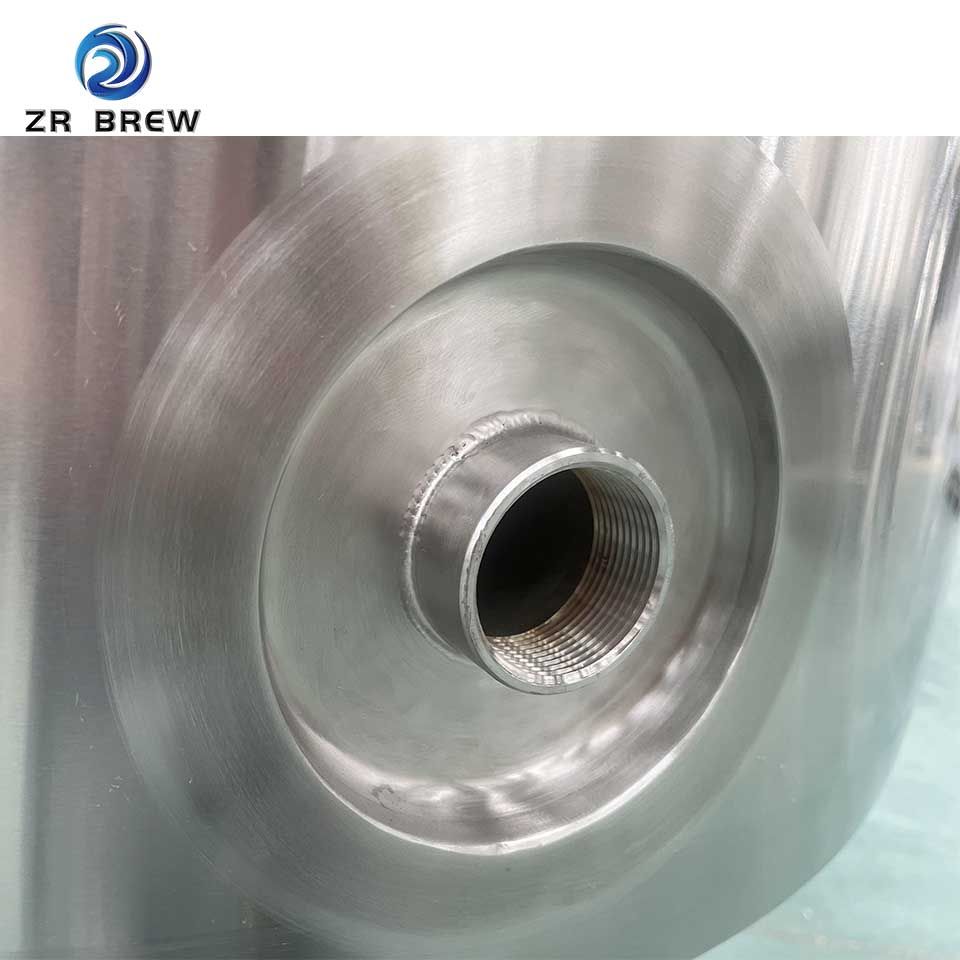

Thermowell for high accuracy temperature sensor
Top hooks for hanging ladders
4pcs completely SUS304 heavy duty legs with leveling pad and legs support
Complete valves, fittings and all parts
100% TIG welding with pure argon gas shield
Interior Finish: Sanitary 2B finish, Pickled and Passivated; (8K Mirror finish optional)
Exterior Finish: Oil brushed finish（2B, 8K Mirror finish optional)
Interior full polished to 0.2~0.4 μm without dead corner
Glycol Jacket: Dimpled plate on cone and side
10BBL bright beer tank optional configuration
Separate blow-off pipe & CIP

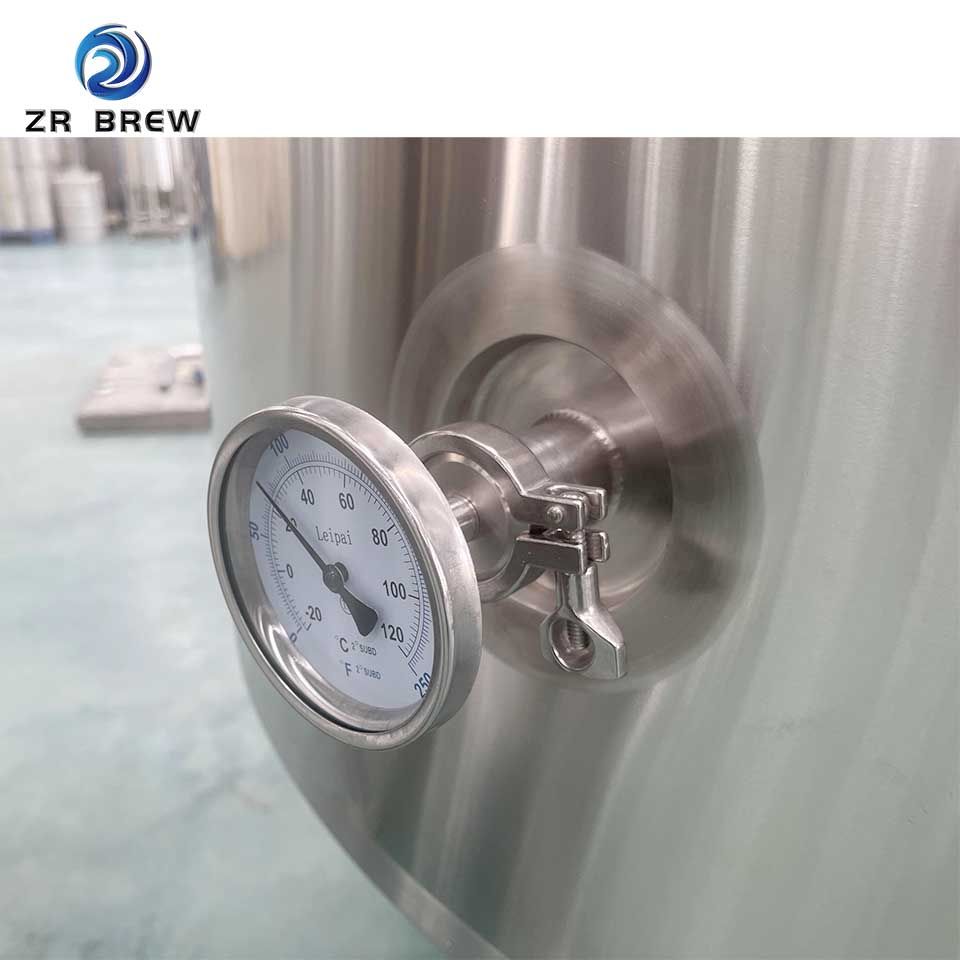

Display temperature gauge in front
Advantage of configuration
Polishing/drawing/mirror finish/pickling passivation optional
Shadowless manholes or top manholes depending on the customer's fermentation process and brewing type.
The headspace is larger, and the covering headspace volume is calculated separately and additionally.
Jacket test by water and gas, 5bar/75psi for 1hour, 3.5bar/52psi for 48 hours,Tank leakage test by water and gas, 4bar/60psi for 1hour, 2.5bar/37.5psi for 48 hours,all data will be recorded to facilitate strict quality control and management
Easy to operate with dedicated ladder
For easy lifting, it is equipped with lifting lugs.
For flexible conveying of beer, it is equipped with a swivel rocker
To ensure tank alignment and leveling, it is equipped with adjustment bolts
How to control the temperature of the fermenter
The PLC or digital displayer is connected to the PT100 temperature sensor installed on the tank through the signal line to control the temperature.
How to use your fermenter?
ZR BREW have paper instructions in English, and we will teach till you do it well.
What is your payment term?
1. T/T transfer, 40% advance payment for start production, after paying 60% balance payment for shipping. 2. Paypal or trade assurance is available.
How long is the delivery time of your fermenter?
Usually the lead time for fermenter tank is 30 working days, while the lead time for complete brewery project is 40 working days, timed from final drawing confirmed
Do you provide after-sales service?
Yes,ZR BREW could provide after-sales service.We have many professional engineers, they can go to your place and teach your person installation and brewing.
