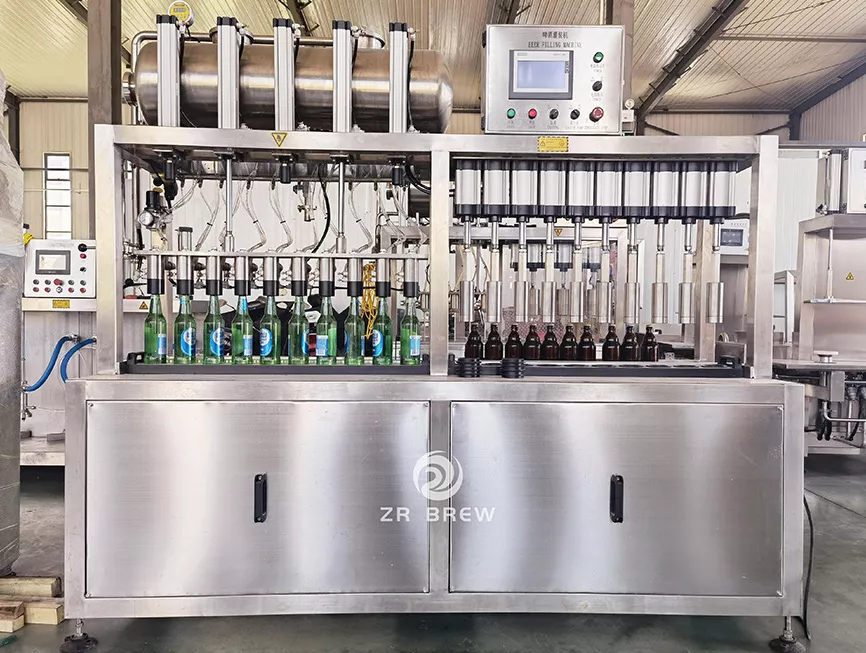

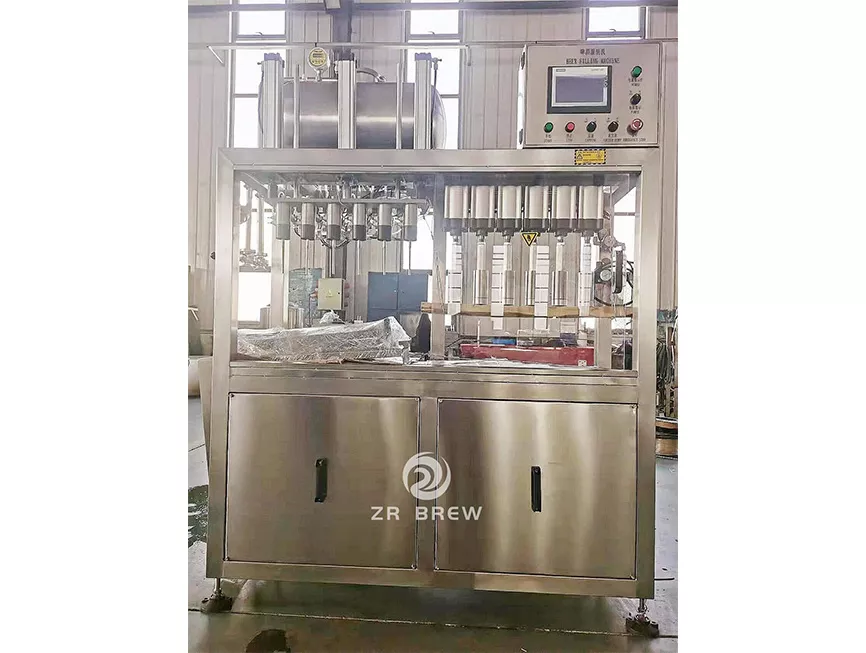

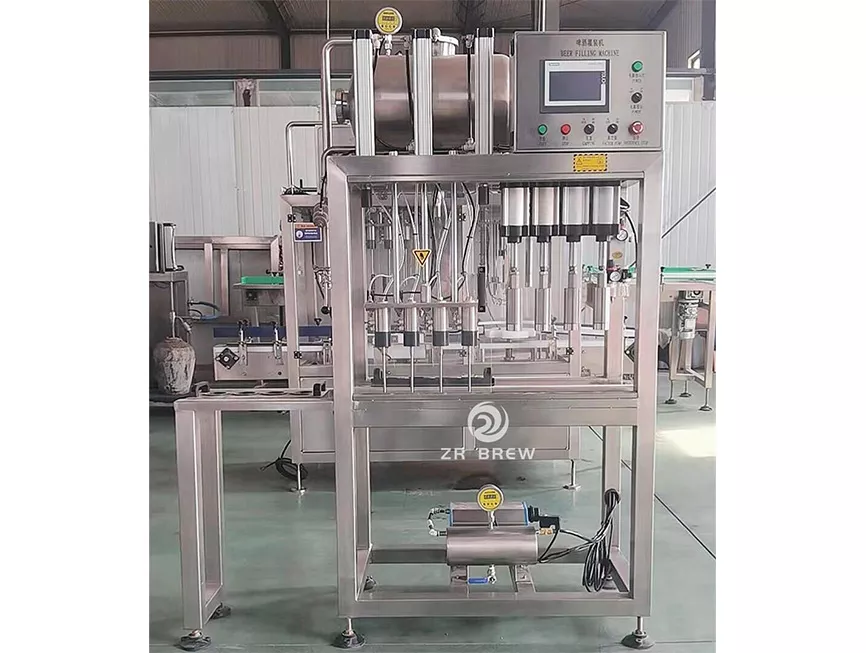

Bottling Machine
Main Function and Feature
▶ Automatic control by PLC, all parameters can be adjusted.
▶ Filling and capping process can be finished in this machine at one time.
▶ With CO2 pressurization and vacuumization function
▶ Adopt isobar filling method and with unique pressure maintaining system，performance stable and reliable, beer loss minimum.
▶ With pressure compensator, to guarantee a stable filling process.
| Bottle filling/capping machine | 330ml | 650ml | Up to 2L |
| 4-head | 200 bottles/H | 100-150 bottles/H | / |
| 6-head | 300 bottles/H | 200-250 bottles/H | / |
| 8-head | 400 bottles/H | 300-350 bottles/H | / |
| 10-head | 500 bottles/H | 400-450 bottles/H | / |
How to control the temperature of the fermenter
The PLC or digital displayer is connected to the PT100 temperature sensor installed on the tank through the signal line to control the temperature.
What factors need to be considered when choosing a set of bar beer brewing equipment
1. The consumption of beer
2. Site conditions
3. Estimated investment
4. Types of winemaking
5. Daily brewing batches
6. Brewing process
7. Wine selling equipment
8. The aesthetics of the equipment
Shandong Zeren Machinery Equipment Co., Ltd. is an equipment manufacturer focusing on biological fermentation industry
