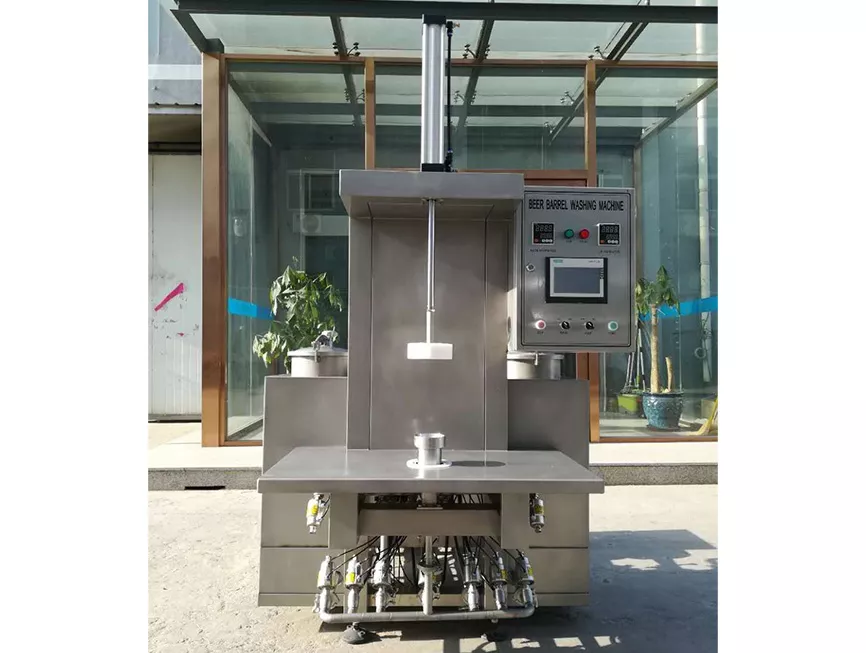

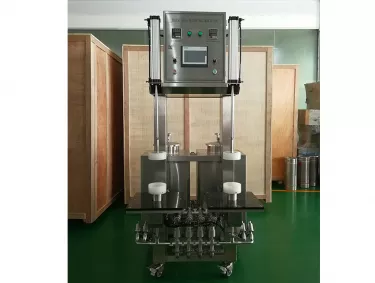

Beer Keg Washing Machine Series
Main Function and Feature
1. All procedures are thoroughly controlled by SIEMENS programmable controller. All parameters (time values) can be adjusted without stopping the machine.
2. Two sets of washing process for customers to choose.
3. Disinfectant and Caustic could be used repeatedly to save water
4. Water tank possess heating function, the temperature can be displayed on screen.
5. With steam sterilization function (user-selectable).
| Equipment Outer Dimensions | 1000*1600*2000mm |
| Net Weight | 300KG |
| Power | Steam Heating: 3KW Electric Heating: 18KW |
| Production Capacity | 30-40 kegs/H |
| Washing Method | Invert Washing |
| Applicable Kegs | Keg with Diameter 250-500mm, Height 360-600mm |
| Heating Way | Electric Heating or Steam Heating |
| Power Supply Voltage | AC 380V 50HZ (customized) |
How to control the temperature of the fermenter
The PLC or digital displayer is connected to the PT100 temperature sensor installed on the tank through the signal line to control the temperature.
What factors need to be considered when choosing a set of bar beer brewing equipment
1. The consumption of beer
2. Site conditions
3. Estimated investment
4. Types of winemaking
5. Daily brewing batches
6. Brewing process
7. Wine selling equipment
8. The aesthetics of the equipment
