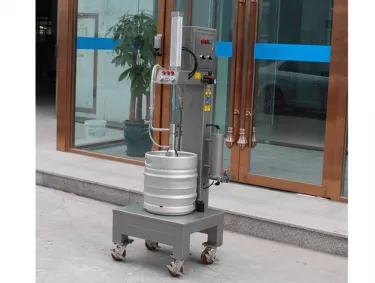

Beer Keg Filling Machine Series
Main Function and Feature
1. All procedures are thoroughly controlled by SIEMENS programmable controller. All parameters (time values) can be adjusted without stopping the machine.

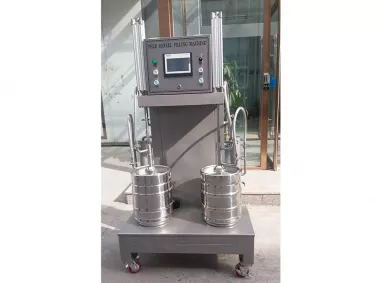

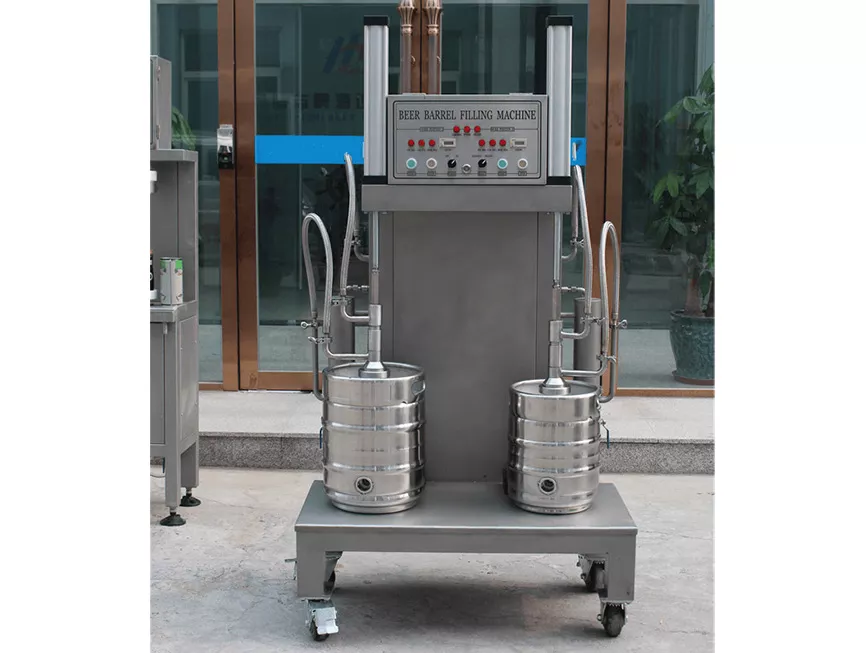

2. Two filling stations with separate control systems.
3. Pressure maintaining system performance is stable and reliable, to make sure the lowest beer loss compared to other similar products.
4. Could fill the kegs with different volume directly, and do not need to adjust any parameter
| Equipment Outer Dimensions | 1000*850*1550mm |
| Net Weight | 115KG |
| Power | 60W |
| Production Capacity | 60-80 kegs/Hr |
| Filling Method | Keg Topside up |
| Applicable Kegs | Keg with Diameter 250-500mm, Height 360-600mm |
| Power Supply Voltage | AC 220V 50HZ（customized） |
How to control the temperature of the fermenter
The PLC or digital displayer is connected to the PT100 temperature sensor installed on the tank through the signal line to control the temperature.
What factors need to be considered when choosing a set of bar beer brewing equipment
1. The consumption of beer
2. Site conditions
3. Estimated investment
4. Types of winemaking
5. Daily brewing batches
6. Brewing process
7. Wine selling equipment
8. The aesthetics of the equipment
